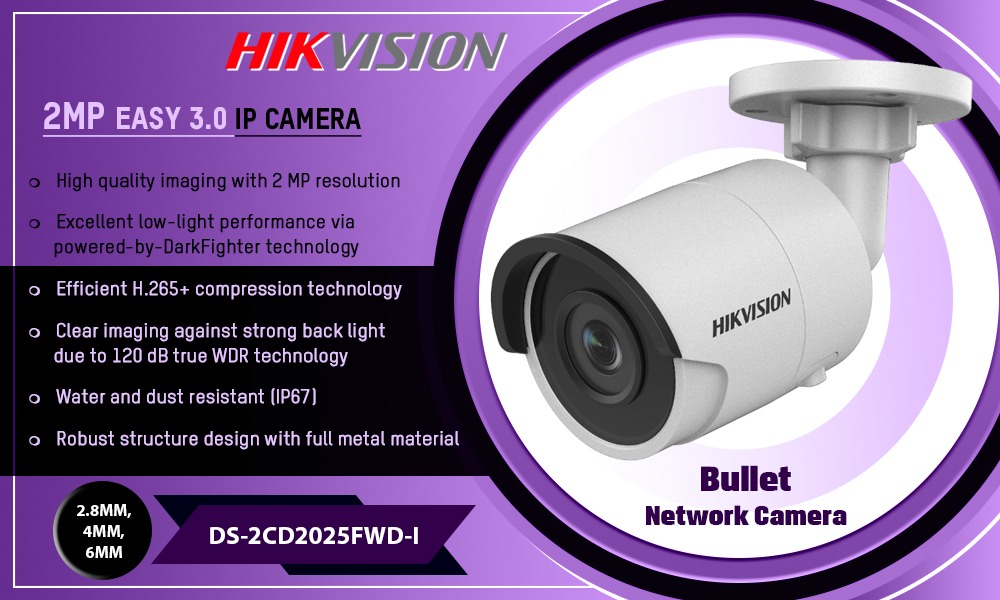

DS-2CD2025FWD-I

Description

Datasheet: DS-2CD2025FWD-I

User Manual: DS-2CD2025FWD-I

Quick Start Guide: DS-2CD2025FWD-I

Faq: DS-2CD2025FWD-I

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR;Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focus: Fixed
• Lens Type: 2.8/4/6 mm
• FOV
  • 2.8 mm, horizontal field of view: 108°
  • 4 mm, horizontal field of view: 86.4°
  • 6 mm, horizontal field of view: 52°
• Aperture: F1.6
• Lens Mount: M12

Illuminator

• IR Range: 30 m

Video

• Max. Resolution: 1920 × 1080
• Main Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
• Sub Stream
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
• Video Compression
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Region Of Interest (ROI): Support 1 fixed region for main stream and sub-stream separately

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login


• Day/Night Switch: Day/Night/Auto/Schedule
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection，face detection, scene change detection
• Face Detection: Yes
• Exception Detection: Scene change detection

General

• Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware Version: V5.5.80
• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Consumption And Current: 12 VDC ± 25%, 5 W; PoE(802.3af, 36 V to 57V, class 3), 6.5 W
• Camera Dimension: Camera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″);Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″)
• Camera Weight: Camera: 410 g (0.9 lb.)
