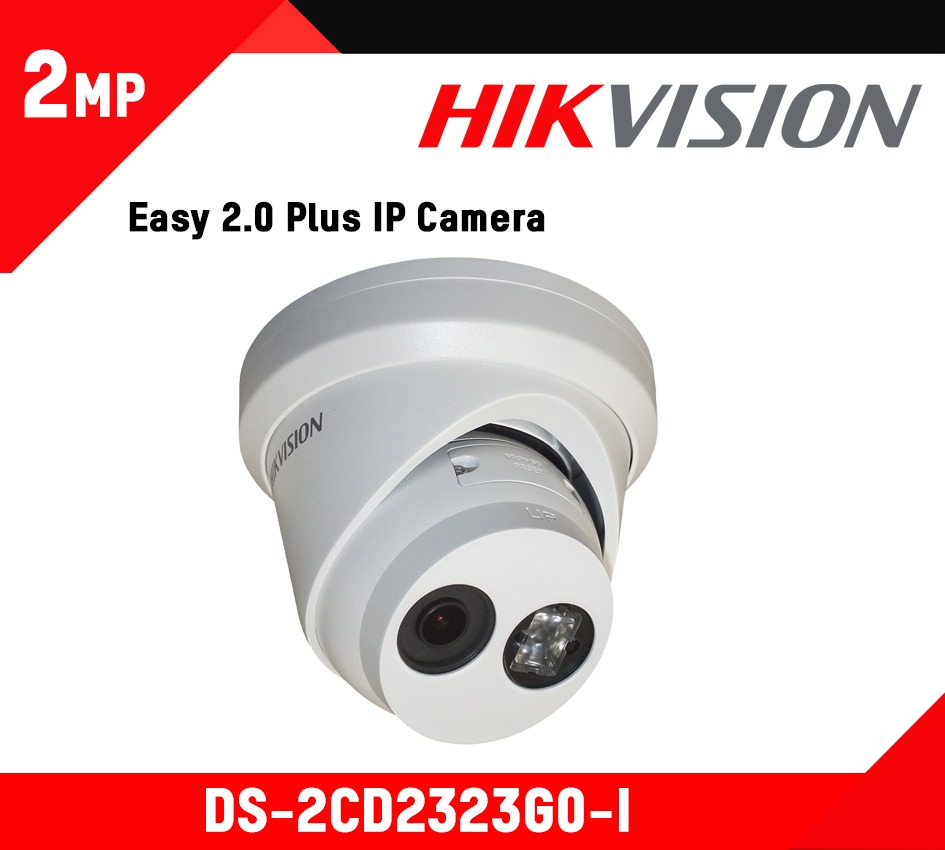

DS-2CD2323G0-I Hikvision 2MP Easy 2.0 Plus IP Camera Colombocctv.com Srilanka
DS-2CD2323G0-I
Availability: not in Stock

DS-2CD2323G0-I

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • 1/2.8″ Progressive Scan CMOS
  • 1920 ×1080@30fps
  • 2.8/4/6/8mm fixed lens
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • Three streams
  • 120dB WDR
  • 2 Behavior analyses, and face detection
  • BLC/3D DNR/ROI
  • IP67
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3-Axis adjustment

Description

 Product Description : DS-2CD2323G0-I

Model DS-2CD2323G0-I
Image Sensor: 1/2.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
8 mm: horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping: No
ROI: 1 fixed region for main stream and sub-stream
Day/Night Switch: Auto/Schedule
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Behavior Analysis: Line crossing detection, intrusion detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Recognition: Face Detection
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Camera: Φ 127.3 × 95.9 mm (Φ 5.0″ × 3.4″)
Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight: Camera: Approx. 610 g (1.3 lb.)
With Package: Approx. 880 g (1.9 lb.)
