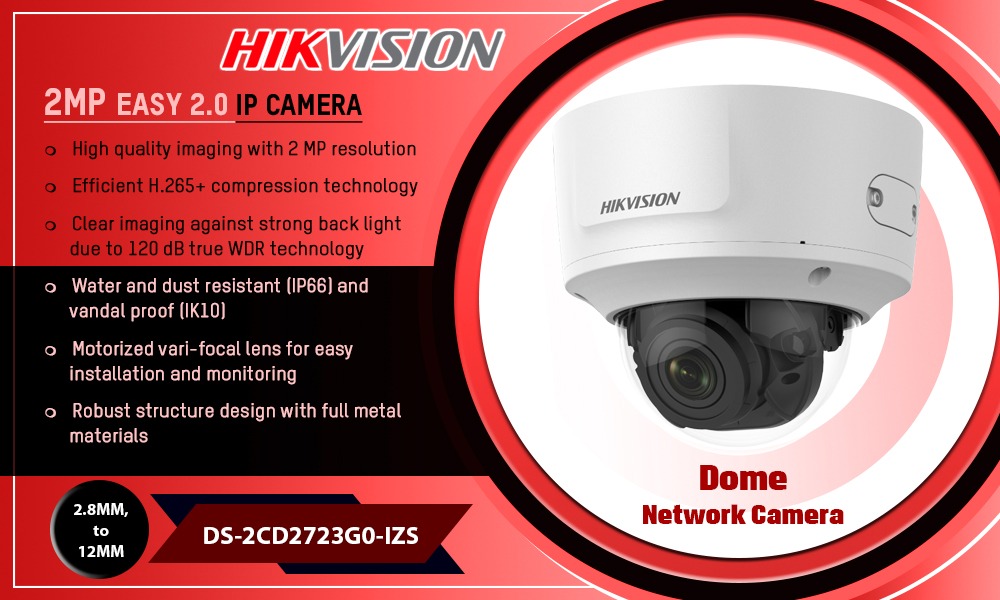

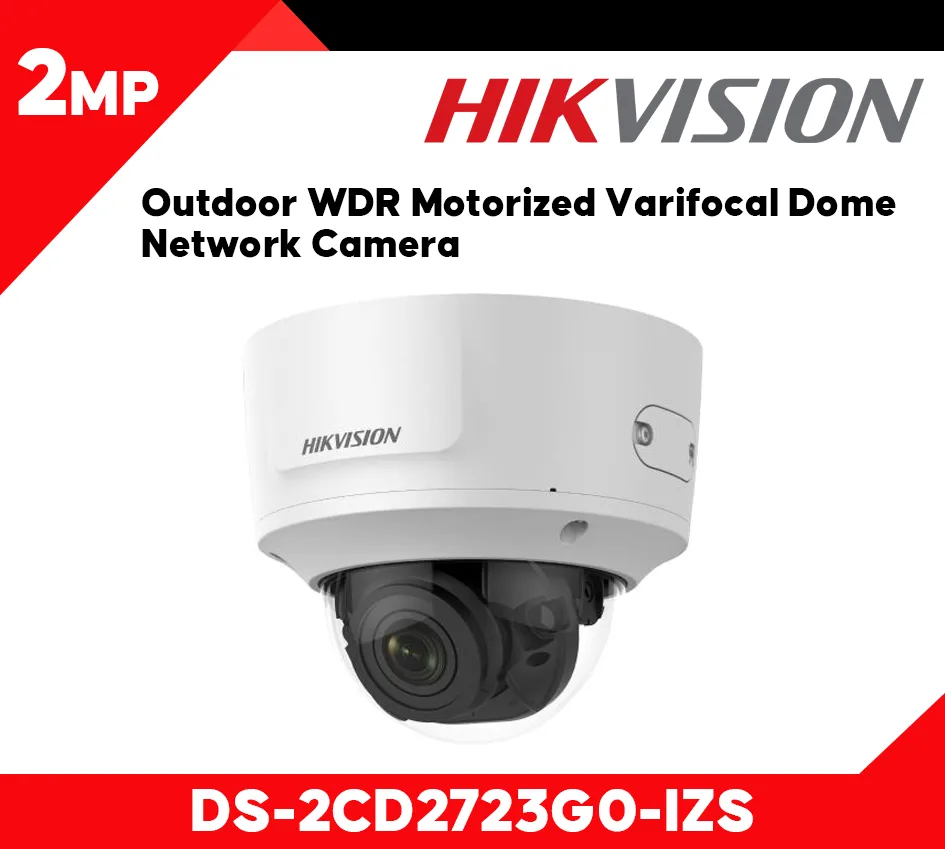

DS-2CD2723G0-IZS

Description

Datasheet: DS-2CD2723G0-IZS

User Manual: DS-2CD2723G0-IZS

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Focus: Auto
• Lens Type: 2.8 to 12 mm，Motorized
• FOV: horizontal FOV: 110° to 31°,vertical FOV: 58° to 18°,diagonal FOV: 136° to 36°
• Aperture: F1.6
• Lens Mount: Φ14
• Aperture Type: Fixed

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850nm

Video

• Max. Resolution: 1920 × 1080
• Main Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
• Video Compression
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Compression: G722.1/G.711/G726/MP2L2/PCM/MP3
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Wi-Fi

• Encryption Mode: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2


• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in
• Target Cropping: No
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Audio: 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
• On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output: 1 Vp-p Composite Output(75Ω) (For adjustment only)

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, face detection
• Face Detection: Yes

General

• Linkage Method
  • Trigger recording: memory card, network storage, pre-record and post-record
  • captured pictures uploading: FTP, HTTP, NAS, Email
  • Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware Version: 5.6.3
• Web Client Language: 32 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, terminal block,PoE (802.3af, class 3)
• Power Consumption And Current: 12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W
• Camera Dimension: Φ 153.4 × 133.1 mm (Φ 6.0″ × 5.2″)
• Weight
  • Camera: Approx. 1330 g (2.9 lb.)
  • With Package: Approx. 1800 g (4.0 lb.)

Approval

• Protection: IK10, IP66
