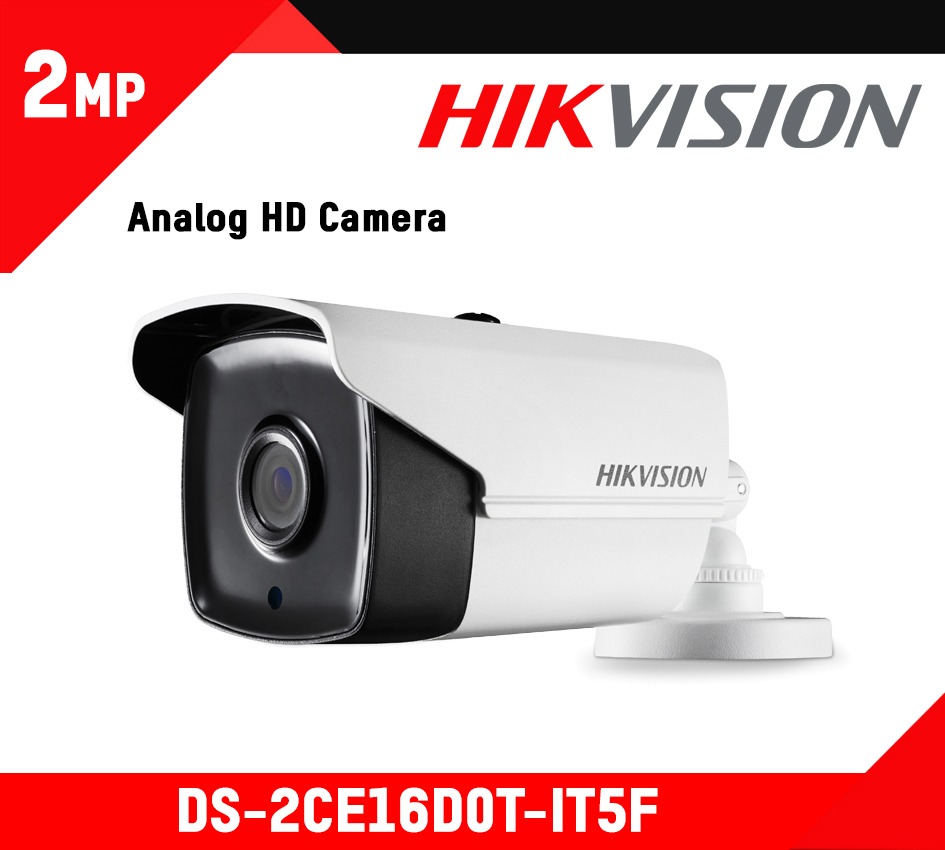

| Model | DS-2CE16D0T-IT5F |
|---|---|
| Image Sensor: | 2MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1920(H)*1080(V) |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0°-360°; Tilt:0°-180°; Rotation: 0°-360° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | 1080p@25fps/1080p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| S/N Ratio: | More than 62 dB |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±15% |
| Power Consumption: | Max. 6W |
| Weather Proof: | IP66 |
| IR Range: | Up to 80m |
| Dimension: | 86.7 mm × 81.6 mm × 226 mm(3.4″ × 3.2″ × 8.9″) |
| Weight: | 430 g (0.95 lb) |
