Description

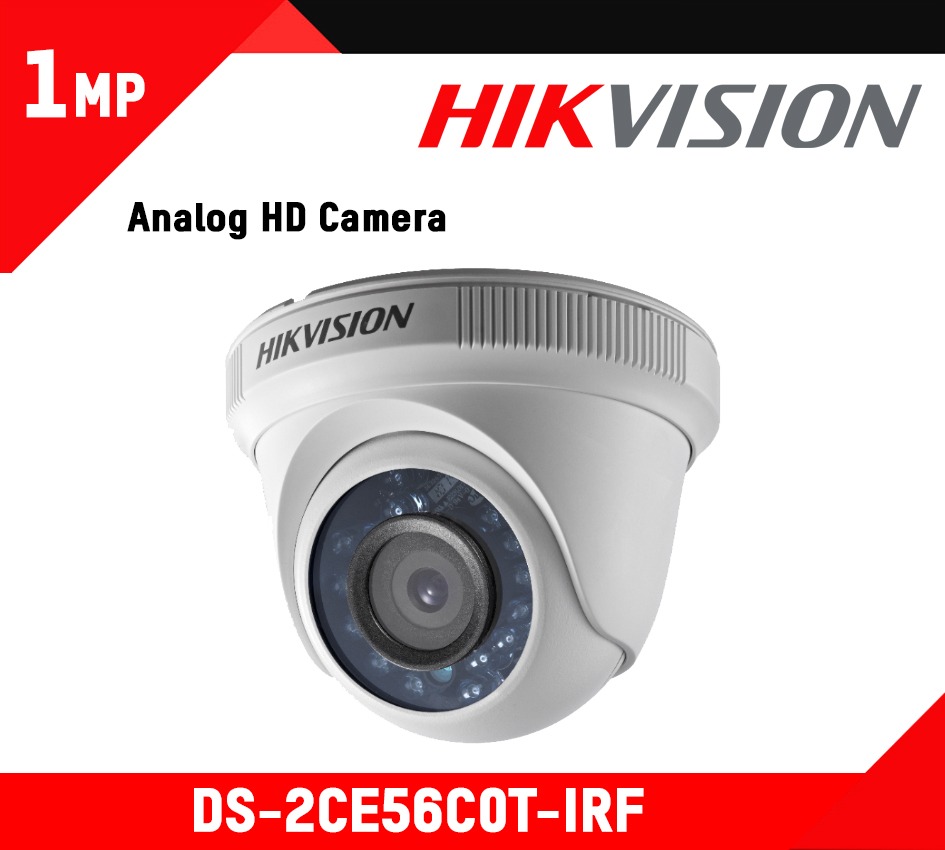

Datasheet: DS-2CE56C0T-IRF
User Manual: DS-2CE56C0T-IRF
Camera
- Image Sensor: 1 MP CMOS image sensor
- Max. Resolution: 1296 (H) × 732 (V)
- Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night: IR Cut Filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: Fixed Lens
- Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
- Lens Mount: M12
- Frame Rate: 720p@25fps/720p@30fps
- Wide Dynamic Range (WDR): No
- SNR: >62 dB
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Power: DC12V; 12 V DC±15%; Max. 4 W
- Dimension: Φ 89.9 × 70.1 mm (3.54″ × 2.76″)
- Weight: 280 g (0.62 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- IR Range: Up to 20 m
Approval
- Protection: IP66
