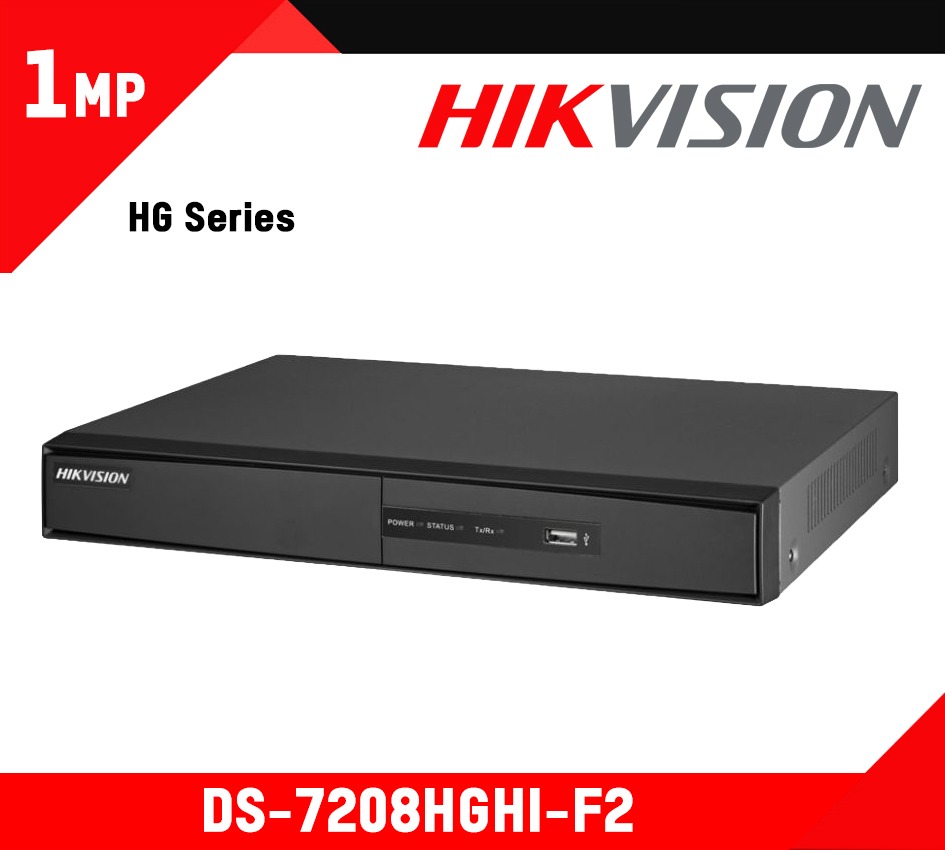

Quick Start Guide: DS-7208HGHI-F2
| Model | DS-7208HGHI-F2 |
|---|---|
| Video compression | H.264+/H.264 |
| Analog Video input | 8-ch BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input | 720p/25Hz, 720p/30Hz |
| AHD input | 720p/25Hz, 720p/30Hz |
| HDCVI input | 720p/25Hz, 720p/30Hz |
| CVBS input | Support |
| IP video input | 2-ch Up to 1080p resolution |
| Audio compression | G.711u |
| Audio input/Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | 720p/WD1/4CIF/VGA/CIF |
| Frame rate | Main stream: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N); 4CIF/2CIF@6fps |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1KΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video & Audio/Video |
| Synchronous playback | 8-ch |
| Remote connections | 128 |
| Network protocols | CP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS |
| SATA | 2 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| USB interface | Rear panel: 2 × USB 2.0 |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 12W |
| Working temperature | -10oC to +55oC (14oF to 131oF) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 380 × 320 × 48 mm (14.9 × 12.6 × 1.9 inch) |
| Weight (without HDD) | ≤ 2 kg (4.4 lb) |
