Description

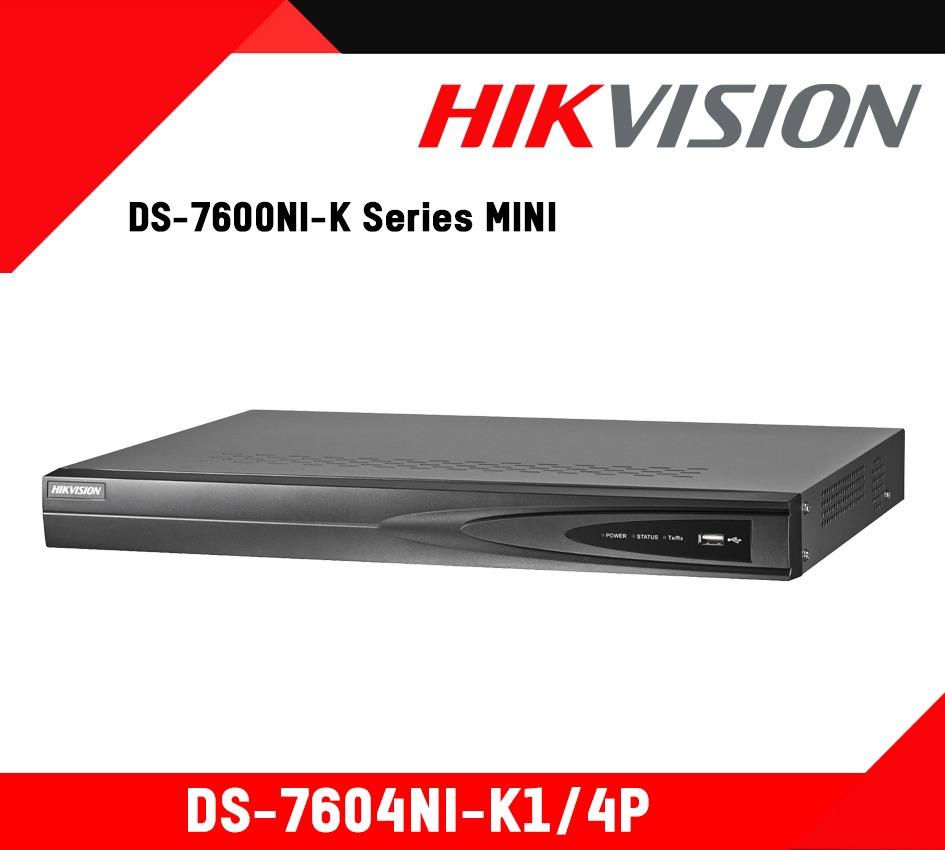

Quick Start Guide : DS-7604NI-K1/4P
Specification
Motion Detection 2.0
- Human/Vehicle Analysis: 1-ch;4-ch
Recording
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Video And Audio
- IP Video Input: 4-ch
- Incoming Bandwidth: 40 Mbps
- Outgoing Bandwidth: 80 Mbps
- HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA simultaneous output
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
- Decoding Format: H.265+/H.265/H.264+/H.264
- Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 4-ch
- Decoding Capability: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Network
- Remote Connection: 32
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
- Interface: 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 50 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 1 SATA interface
- Capacity: Up to 8 TB capacity for each disk
- USB Interface: 2 × USB 2.0
- Alarm In/Out: N/A (4/1 is optional)
General
- Power Supply: 48 VDC, 1.35 A
- Consumption: ≤ 10 W (without HDD and PoE off)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
- Weight: ≤ 1.18 kg (without HDD, 2.6 lb.)
Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
