Description
Datasheet: DS-KH6310-WL
User Manual: DS-KH6310-WL

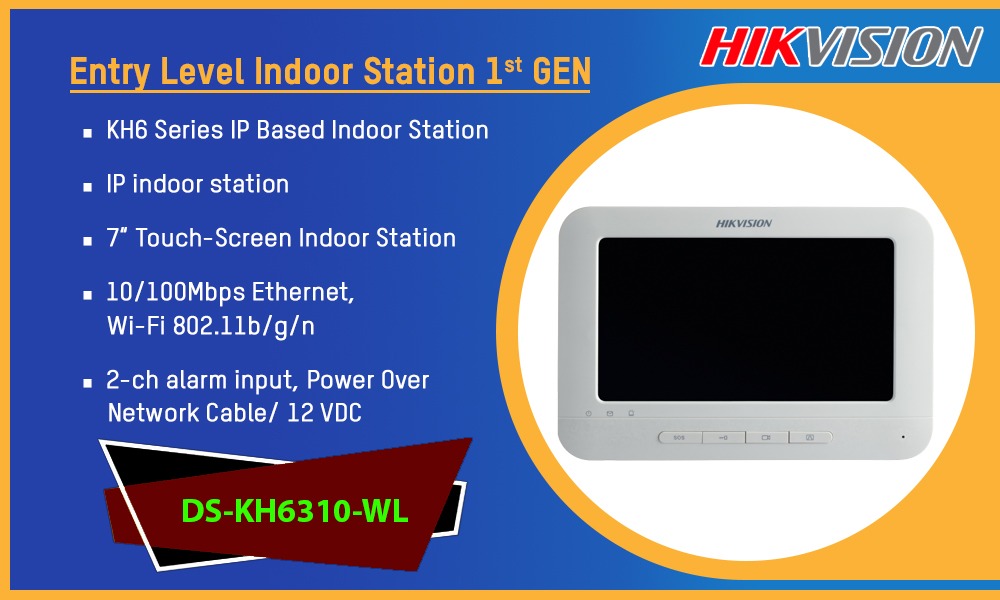

| Model | DS-KH6310-WL | |
|---|---|---|
| System Parameters | ||
| Processor: | High-Performance Embedded SOC Processor | |
| Operation System: | Embedded Linux Operation System | |
| Memory: | 256M | |
| Display Parameters | ||
| Display Screen: | 7-Inch Colorful TFT LCD | |
| Display Resolution: | 800 × 480 | |
| Operation Method: | Capacitive Touch Screen, Physical Button | |
| Operation interface: | Flattened UI Operation Interface | |
| Audio Parameters | ||
| Audio Input: | Built-in Omnidirectional Microphone | |
| Audio Output: | Built-in Loudspeaker | |
| Audio Compression Standard: | G.711 U | |
| Audio Compression Rate: | 64 Kbps | |
| Audio Quality: | Noise Suppression and Echo Cancellation | |
| Network Parameters | ||
| Ethernet: | 10/100 Mbps Self-Adaptive Ethernet | |
| Network Protocol: | TCP/IP, RTSP | |
| Alarm Parameters | ||
| Alarm Input: | 2-ch Alarm Input Sensor | |
| Device Interfaces | ||
| Network Interface: | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface | |
| RS-485: | 1 RS-485 Half-Duplex Port | |
| I/O Output: | 1 | |
| General | ||
| Power Supply: | 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) | |
| Power Consumption: | ≤10 W | |
| Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE | |
| Working Temperature: | -10° C to + 55° C (14° F to 131° F) | |
| Working Humidity: | 10% to 90% | |
| Dimensions(L × W × H): | 217 mm × 142 mm × 26 mm (8.5″ × 5.6″ × 1.0″) | |
