Description
Fingerprint_Time _Attendance_And_Access_Control_ Software_Manual(RAMS) : A-F011
Fingerprint_Time_Attendance_Hardware_User_Manual(AF-Series) : A-F011
| Specifications: | |
|---|---|

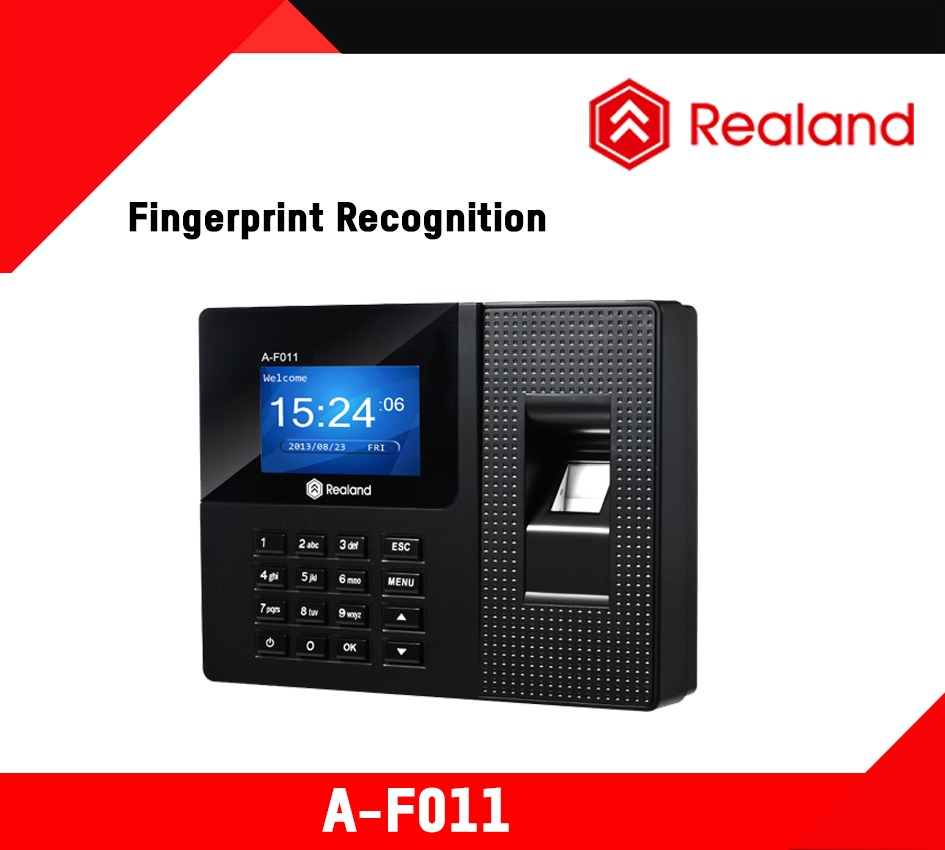

| Model | A-F011 |
| Max User Capacity | 1,000 |
| Fingerprint Capacity | 1,000 |
| Transaction Capacity | 100,000 |
| Language | English, Spanish, German (available to customize others) |
| Push Technology (UDP) | Device Pushes real-time attendance record to the RAMS Software automatically, including the offline records. |
| Display | 2.8 inch TFT Screen |
| Fingerprint Sensor | 500DPI (Optical) |
| Hardware Platform | REALAND ZDC2911 |
| Algorithm Version | REALAND RSFv5.1 |
| Communication | TCP/IP, USB, USB Memory Disk |
| Authentication Method | Fingerprint/RFID Card (125Khz)/Password |
| Bell | Built-in Timing Bell (Scheduled-bell) |
| Support | Simple access control & external belling |
| Optional | Battery backup(3hours) |
| Power Supply | DC 5V/1A |
| Operating environment | Operating Temp: 0°c – 45°c, Humidity:20%-80% |
| Terminal Size: | 180(L)*134(W)*36(H)mm |
| Color for choose(Case) | Black, Silver |
