Description

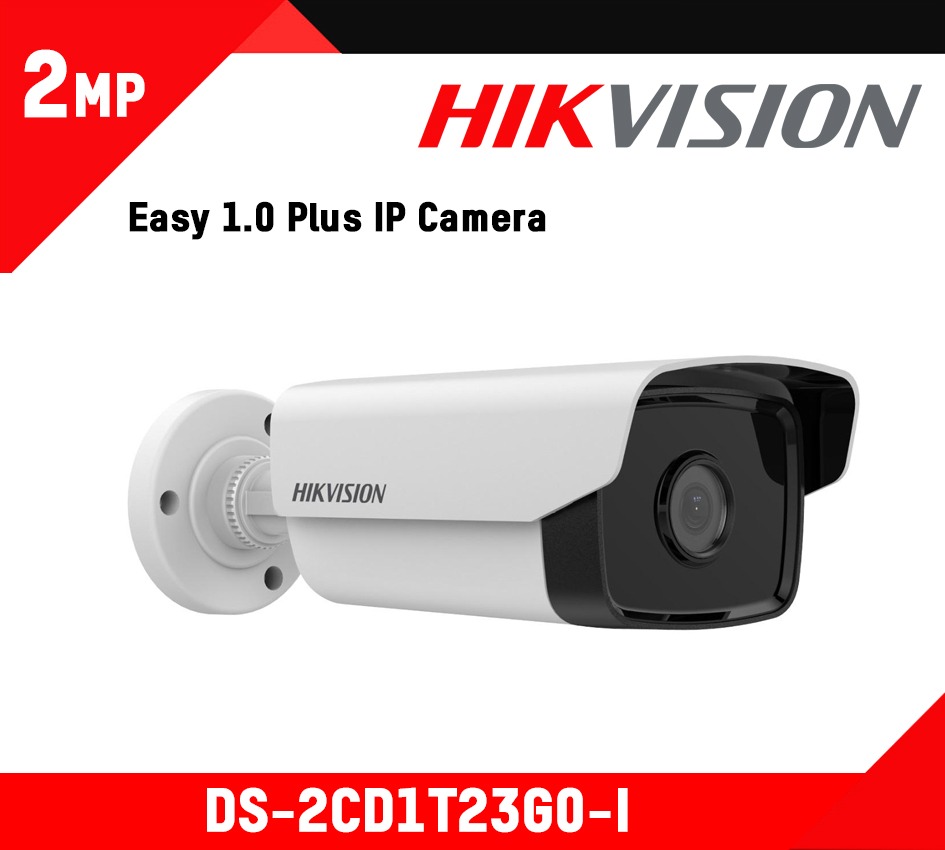

Datasheet: DS-2CD1T23G0-I
User Manual: DS-2CD1T23G0-I
Camera
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: Digital WDR
- Day & Night: ICR Cut
- Linkage Method: Upload to FTP, notify surveillance center, send email, trigger capture
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
- Lens Type & FOV
- 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 103°;
- 6mm, horizontal FOV 54°, vertical FOV 31°, diagonal FOV 63°
- Aperture: F2.0
- Lens Mount: M12
Illuminator
- IR Range: 50 m
- Wavelength: 850nm
- Smart Supplement Light: Yes
Video
- Max. Resolution: 1920 × 1080
- Main Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream
- 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Stream Type: Main stream/Sub-stream
- Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Network
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- SNR: > 50 dB
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
- Basic Event: Motion detection, video tampering alarm, exception (illegal login)
General
- Firmware Version: V5.5.84
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
- Power Consumption And Current: 12 VDC, 0.40 A, max. 4.8 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6 W
- Power Interface: Φ5.5 mm coaxial power plug
- Material
- Front cover & bracket: metal
- back cover & sun shield: plastic
- Camera Dimension: 71.67 × 92.87 × 221.49 mm (2.82″ × 3.65″ × 8.72″)
- Package Dimension: 234 × 120 × 117 mm (9.21″ × 4.72″ × 4.61″)
- Camera Weight: 540 g (1.19 lb.)
- With Package Weight: 810 g (1.79 lb.)
Approval
- Protection: Ingress protection: IP67 (IEC 60529-2013)
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
