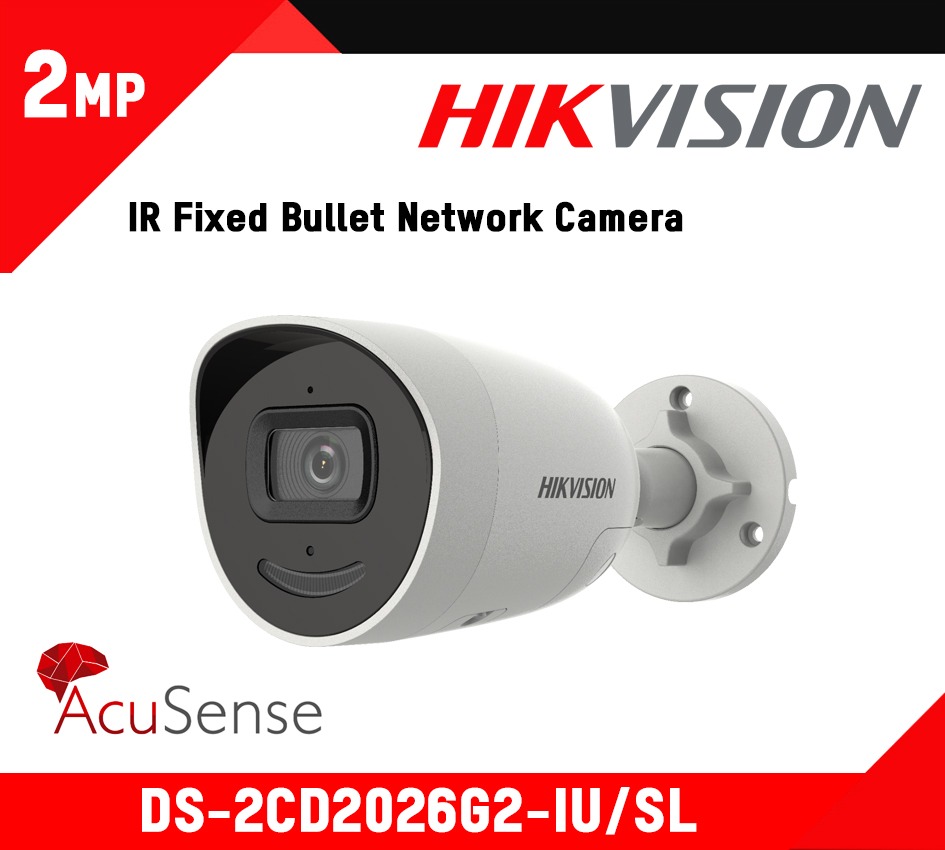

DS-2CD2026G2-IU/SL - Hikvision IR Fixed Bullet Network 2mp ip AcuSense Camera - Colombo CCTV - Sri-lanka
DS-2CD2026G2-IU[SL
Availability: not in Stock

DS-2CD2026G2-IU/SL

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 2 MP AcuSense Strobe Light and Audible Warning Fixed Mini Bullet Network Camera
  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provides real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
Category:

Description


Datasheet: DS-2CD2026G2-IU/SL

User Manual: DS-2CD2026G2-IU/SL

Quick Start Guide: DS-2CD2026G2-IU/SL

Camera
  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Slow Shutter: Yes
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • P/N: P/N
  • Wide Dynamic Range: 120 dB
Lens
  • Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV
    • 2.8 mm, horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 129°
    • 4 mm, horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 102°
    • 6 mm, horizontal FOV: 55°, vertical FOV: 29°, diagonal FOV: 65°
  • Aperture: F1.4
  • Lens Mount: M12
  • Iris Type: Fixed
DORI
  • DORI
    • 2.8 mm: D: 44.3 m, O: 17.6 m, R: 8.9 m, I: 4.4 m
    • 4 mm: D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
    • 6 mm: D: 86.9 m, O: 34.5 m, R: 17.4 m, I: 8.7 m
Illuminator
  • IR Range: Up to 40 m
  • IR Wavelength: 850 nm
  • Smart Supplement Light: Yes
  • Supplement Light Type: IR
Video
  • Max. Resolution: 1920 × 1080
  • Main Stream
    • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      *Third stream is supported under certain settings.

  • Video Compression
    • Main stream: H.265/H.264/H.265+/H.264+
    • Sub-stream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264

      *Third stream is supported under certain settings.

  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 TypeBase: line Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.265 and H.264 encoding
  • Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Smooth Streaming: Yes
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser
    • Plug-in required live view: IE 10+
    • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    • Local service: Chrome 57.0+, Firefox 52.0+
  • SNR: ≥ 52 dB
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
  • Built-In Microphone: Yes
  • Built-In Speaker: Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
  • On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
  • Hardware Reset: Yes
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Scene change detection
Deep Learning Function
  • Face Capture: Yes
  • Perimeter Protection
    • Line crossing detection, intrusion detection, region entrance detection, region exiting detection
    • Supports human and vehicle targets classification
General
  • Linkage Method: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email
  • Web Client Language: 33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Software Reset: Yes
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, reverse polarity protection, PoE: 802.3af, Class 3
  • Power Consumption And Current: 12 VDC, 0.54 A, max. 6.5 W, PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.0 W
  • Power Interface: Ø5.5 mm coaxial power plug
  • Camera Material: Metal
  • Camera Dimension: 72.9 mm × 73.3 mm × 191.1 mm (2.9″ × 2.9″ × 7.5″)
  • Package Dimension: 234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)
  • Camera Weight: Approx. 580 g (1.3 lb.)
  • Firmware Version: V5.5.113
  • With Package Weight: Approx. 800 g (1.8 lb.)
Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)
