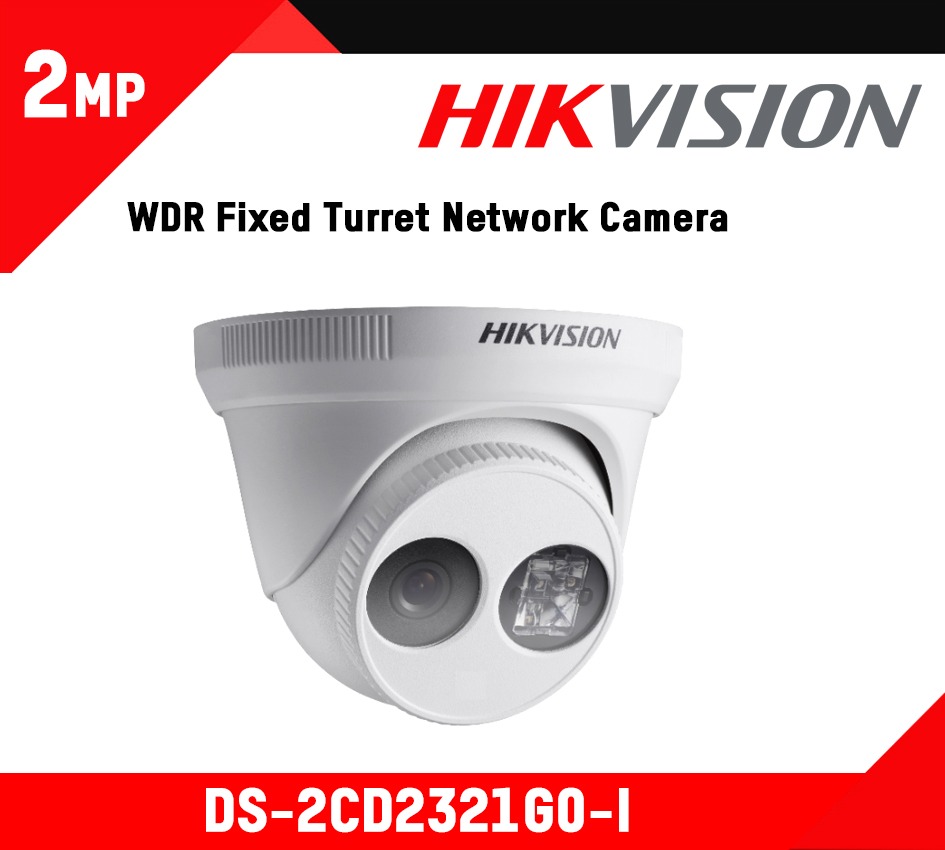

DS-2CD2321G0-I - Hikvision 2mp IP WDR Fixed Turret Network Camera Colombo CCTV - Sri-lanka
DS-2CD2321G0-I
Availability: not in Stock

DS-2CD2321G0-I

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 1/3″ Progressive CMOS
  • 1920×1080:25fps(P)/30fps(N)
  • H.265+/H.265/H.264/MJPEG
  • DC12V & PoE
  • IR range: up to 30m
  • Bulit-in mic

Description

Camera
  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON); B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • Auto-Iris: No
  • Day & Night: IR Cut Filter
  • Digital Noise Reduction: 3D DNR
  • Wide Dynamic Range: DWDR
  • Angle of adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
  • Focal Length: 2.8/4/6 mm
  • Aperture: F2.0
  • Focus: No
  • FOV
    • 2.8 mm: horizontal FOV: 103°, vertical FOV: 62°, diagonal FOV: 118°
    • 4 mm: horizontal FOV: 90°, vertical FOV: 48°, diagonal FOV: 109°
    • 6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
  • Lens Mount: M12
IR
  • IR Range: Up to 30 m
  • Wavelength: 850nm
Compression Standard
  • Video Compression: Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.264+: Main stream supports
  • H.265 Type: Main Profile
  • H.265+: Main stream supports
  • Video Bit Rate: 32 Kbps to 8 Mbps
Smart Feature-set
  • Behavior Analysis: Line crossing detection, intrusion detection
  • Region of Interest: 1 fixed region for main stream
  • Max. Resolution:  1920 × 1080
  • Main Stream
    • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
    • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream
    • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
    • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Image Enhancement: BLC, 3D DNR
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target Cropping: No
  • Day/Night Switch: Day/Night/Auto/Schedule

Network

  • Network Storage: NAS (NFS, SMB/CIFS)
  • Alarm Trigger: Motion detection, video tampering, illegal login, HDD full, HDD error
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware Version: V5.5.3
  • API: ONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live View: Up to 6 channels
  • User/Host: Up to 32 users 3 levels: Administrator, Operator and User
  • Client: i VMS-4200, Hik-Connect, iVMS-5200
  • Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • Video Output: No
  • SVC: No
  • Reset Button: No
General
  • Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
  • Power Consumption and Current PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max: 6.5W 12 VDC, 0.4 A, max. 5.0W
  • Protection Level: IP67
  • Material Shell: plastic, camera body: metal
  • Dimensions Camera: Φ 114.6 × 82.1 mm (Φ 4.5″ × 3.2″) With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Weight Camera: approx. 400 g (0.9 lb.) With package: approx. 500 g (1.1 lb.)
