Description

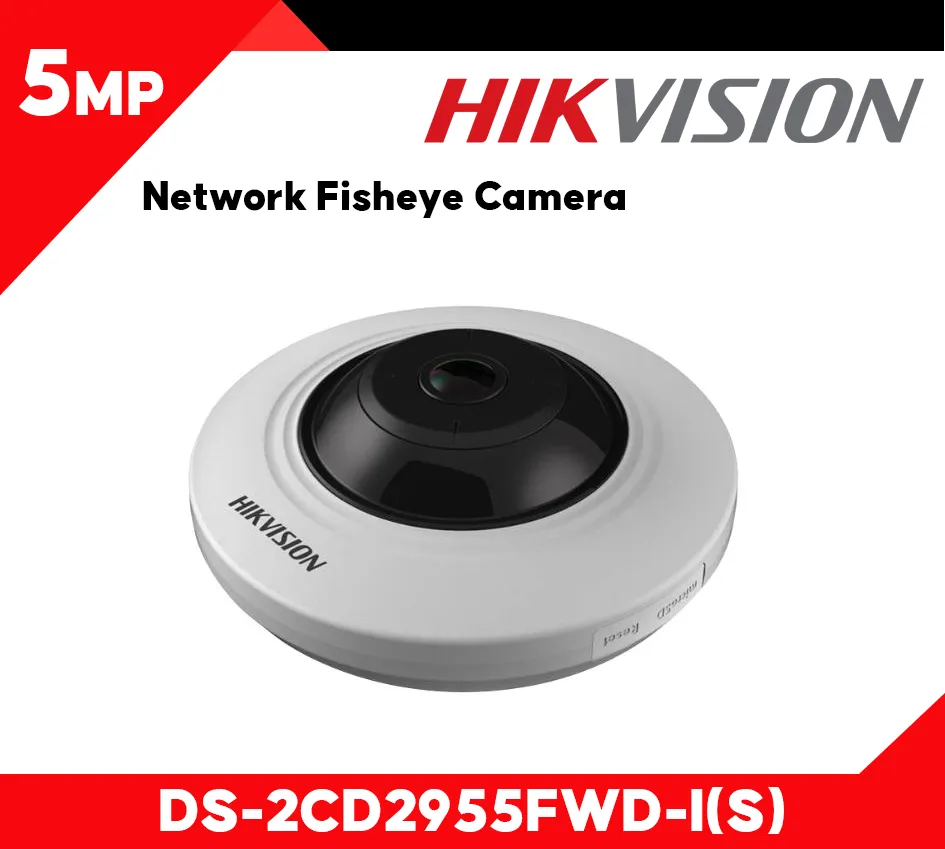

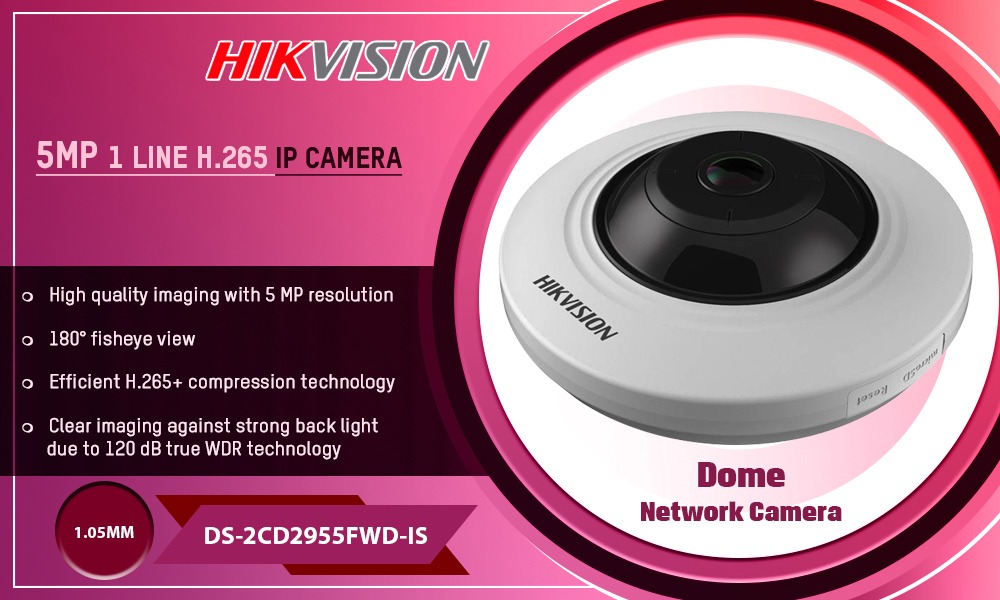

| Model | DS-2CD2955FWD-IS |
|---|---|
Camera |
|
| Image Sensor | 1/2.5″ Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180° |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
Compression Standard |
|
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile | Main Profile/High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Dual Stream | Yes |
Image |
|
| Max. Image Resolution | 2560×1920 |
| Frame Rate | 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960)
60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960) |
| Sub Stream | 50Hz: 25fps (352× 288, 704 × 576)
60Hz: 30fps (352 × 240, 704 × 576) |
| Image Enhancement | WDR/3D DNR/Backlight Compensation/Defog |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Distortion Correction | Support |
| BLC | Support |
| ROI | Support 1 fixed region for each stream |
| Day/Night Switch | Auto/Scheduled |
Network |
|
| Network Storage | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
Interface |
|
| Audio | 1 input (line in), 1 output |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | 1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.) |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Smart Feature-set |
|
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
General |
|
| Operating Conditions | -10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing) |
| Power Consumption | DC 12V ± 25%, 2A, 5W
PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W |
| IR Range | Up to 8m |
| Dimensions | Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″) |
