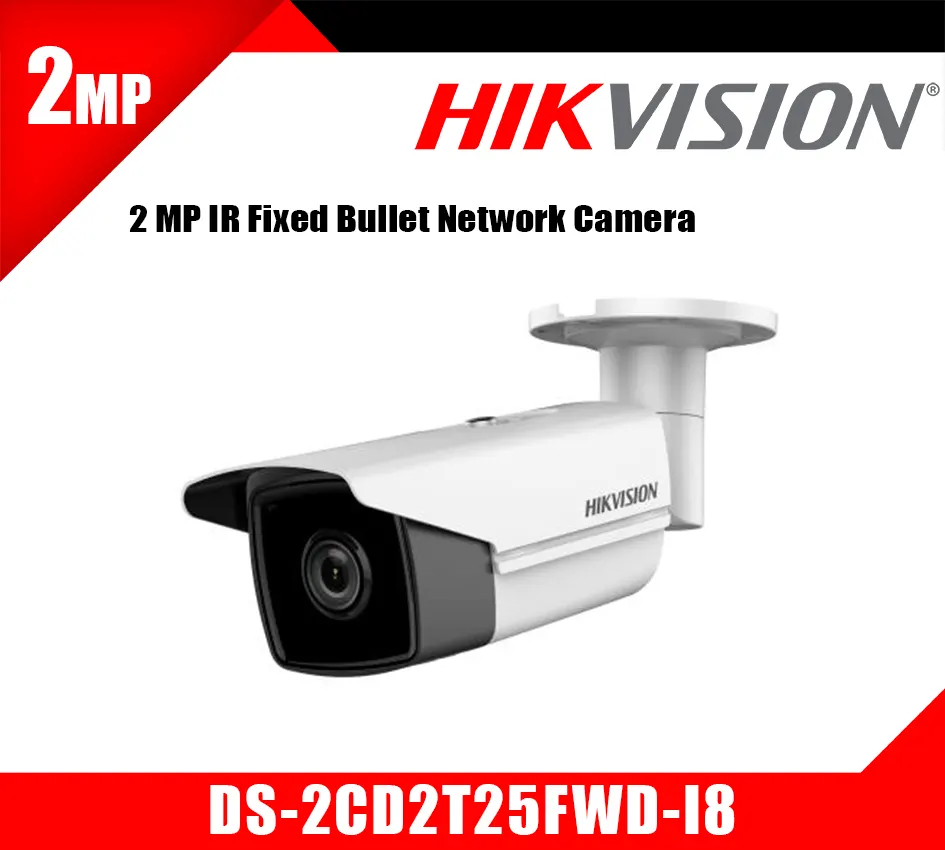

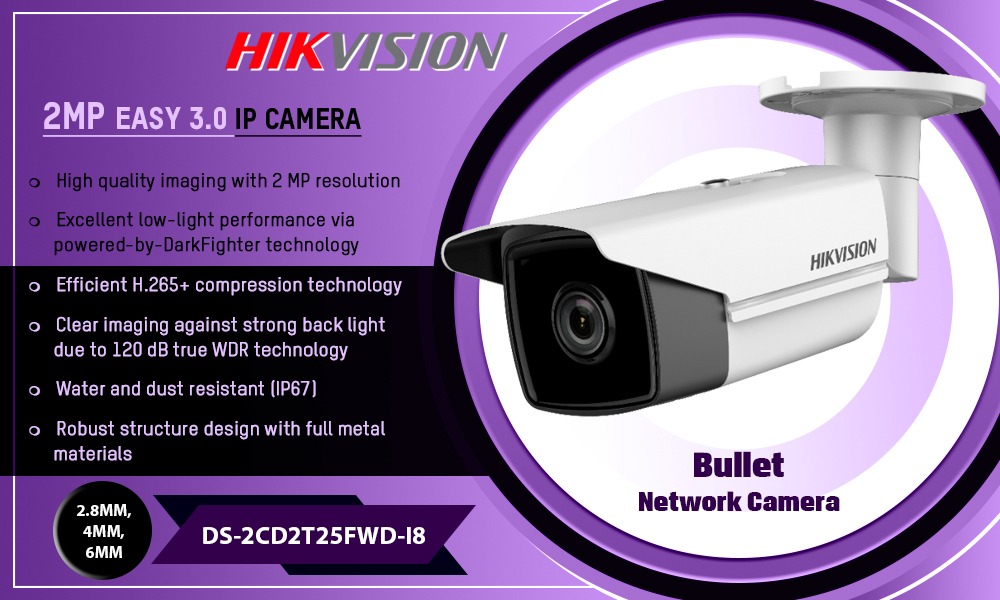

DS-2CD2T25FWD-I8

Description

Datasheet: DS-2CD2T25FWD-I8

User Manual: DS-2CD2T25FWD-I8

Quick Start Guide: DS-2CD2T25FWD-I8

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Lens

• Focus: Fixed
• Lens Type: 2.8/4/6/8/12 mm
• FOV
  • 2.8 mm, horizontal field of view: 108°
  • 4 mm, horizontal field of view: 86.4°
  • 6 mm, horizontal field of view: 52°
• Lens Mount: M12
• Aperture Type: F1.6

Illuminator

• IR Range: up to 80 m

Video

• Max. Resolution: 1920 × 1080
• Main Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
• Video Compression
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Region Of Interest (ROI): Support 1 fixed region for main stream and sub-stream separately

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Network Storage: Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser: Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
• Alarm Trigger: Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error


• Day/Night Switch: Day/Night/Auto/Schedule
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

• On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Smart Event: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
• Face Detection: Yes
• Exception Detection: Scene change detection

General

• Firmware Version: V5.5.80
• General Function: One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
• Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, PoE(802.3af 36 to 57 V, class 3)
• Power Consumption And Current: 12 VDC ± 25%, 10 W; PoE, 12.5 W
• Camera Dimension: Camera: Φ105 × 299.7 mm (Φ4.13″ × 11.80″),Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
• Camera Weight: 1200 g (2.65 lb.)

Approval

• Protection: IP67
