Description

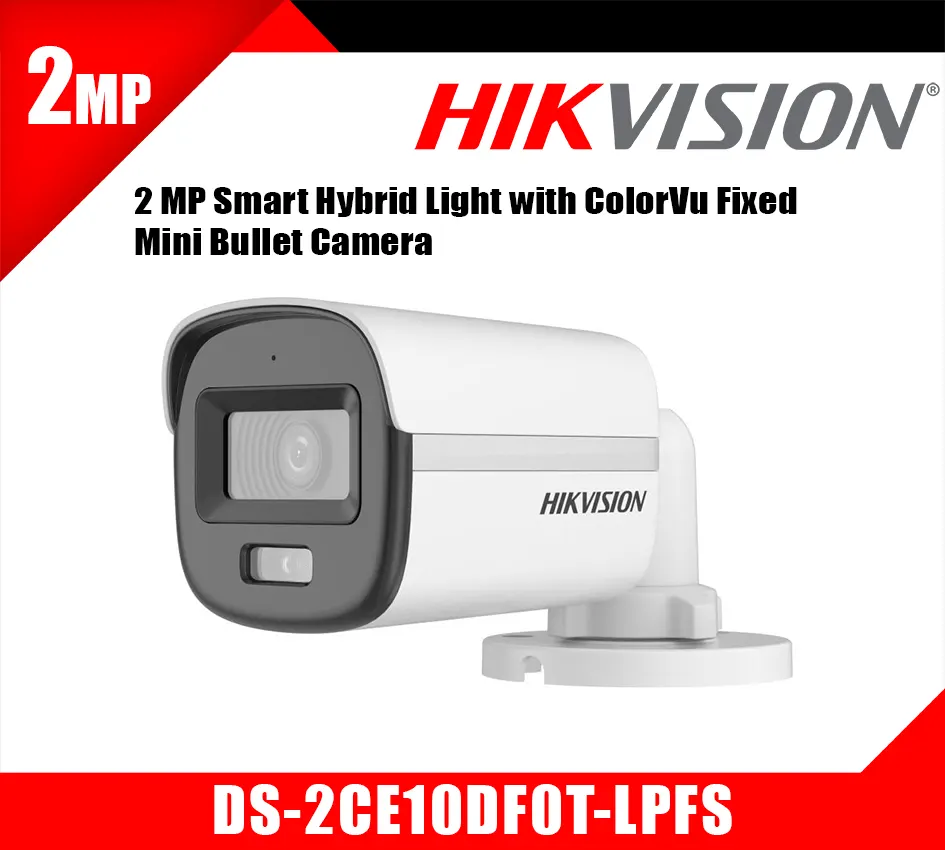

User Manual: DS-2CE10DF0T-LPFS
Quick Start Guide: DS-2CE10DF0T-LPFS
Specification
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°
- 3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
- Lens Mount: M12
Illuminator
- Supplement Light Type: IR, White Light
- Smart Supplement Light: Yes
- Supplement Light Range: IR: Up to 20 m,White Light: Up to 20 m
- Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
- Image Settings: Brightness, Sharpness, Anti-banding, AGC
- Frame Rate
- TVI: 1080p @25 fps/30 fps
- CVI: 1080p @25 fps/30 fps
- AHD: 1080p @25 fps/30 fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Noise Reduction: 3D DNR/2D DNR
- Image Enhancement: DWDR, BLC, HLC, Global
- White Balance: Auto, Manual
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Built-In Microphone: Yes
General
- Material: Plastic
- Power: 12 VDC ± 25%, max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.
- Dimension: 161.1 mm × 68.4 mm × 65.2 mm (6.34″ × 2.69″ × 2.57″)
- Weight: Approx. 235 g (0.52 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- Communication: HIKVISION-C
- Language: English
Approval
- Protection: IP67
