Description

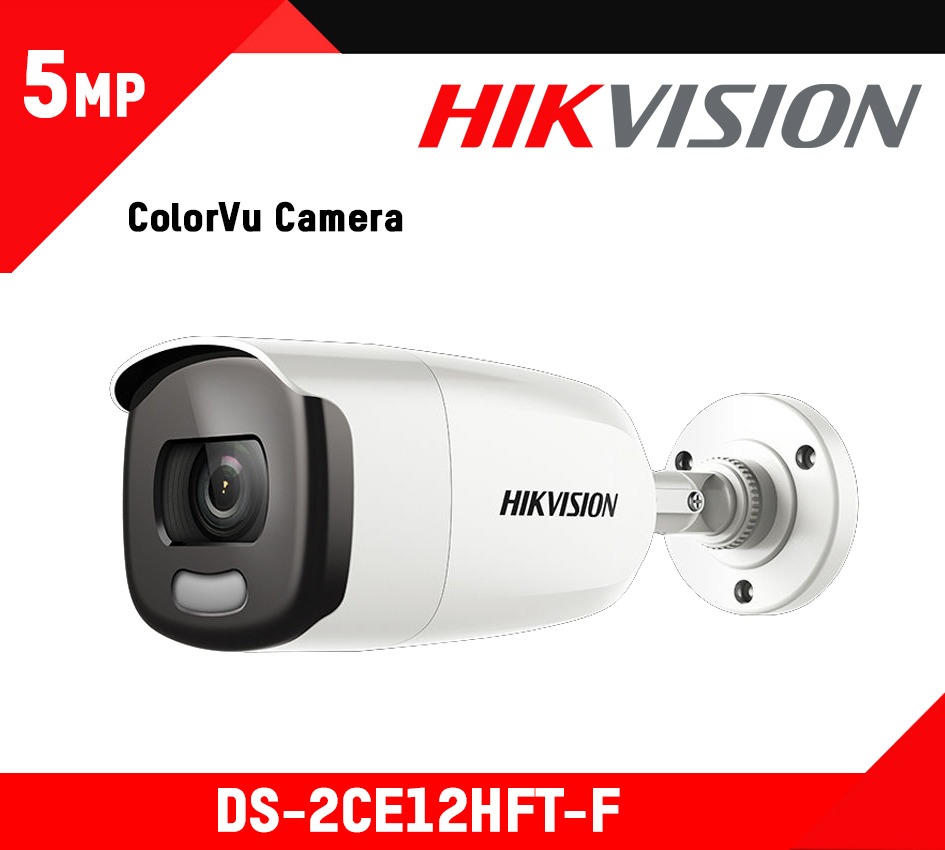

Data sheet : DS-2CE12HFT-F
User Manual : DS-2CE12HFT-F
| Camera | |
|---|---|
| WDR (Wide Dynamic Range): | ≥130 dB |
| Image Sensor: | 5MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Lens Mount: | M16 |
| Day& Night: | Color |
| Lens | |
| Horizontal Field of View: | 80.1° (3.6 mm), 49.3° (6 mm) |
| Menu | |
| AGC: | Yes |
| Language: | English |
| Interface | |
| Video Out: | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Ingress Protection: | IP67 |
| Operation Condition: | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Material: | Front Cover: Metal Main Body: Plastic |
| Power Supply: | 12 VDC±25% |
| Dimension: | 82.6 mm × 77.1 mm × 215.7 mm (3.25″ × 3.04″ × 8.49″) |
| Weight: | Approx. 415 g (0.91 lb.) |
