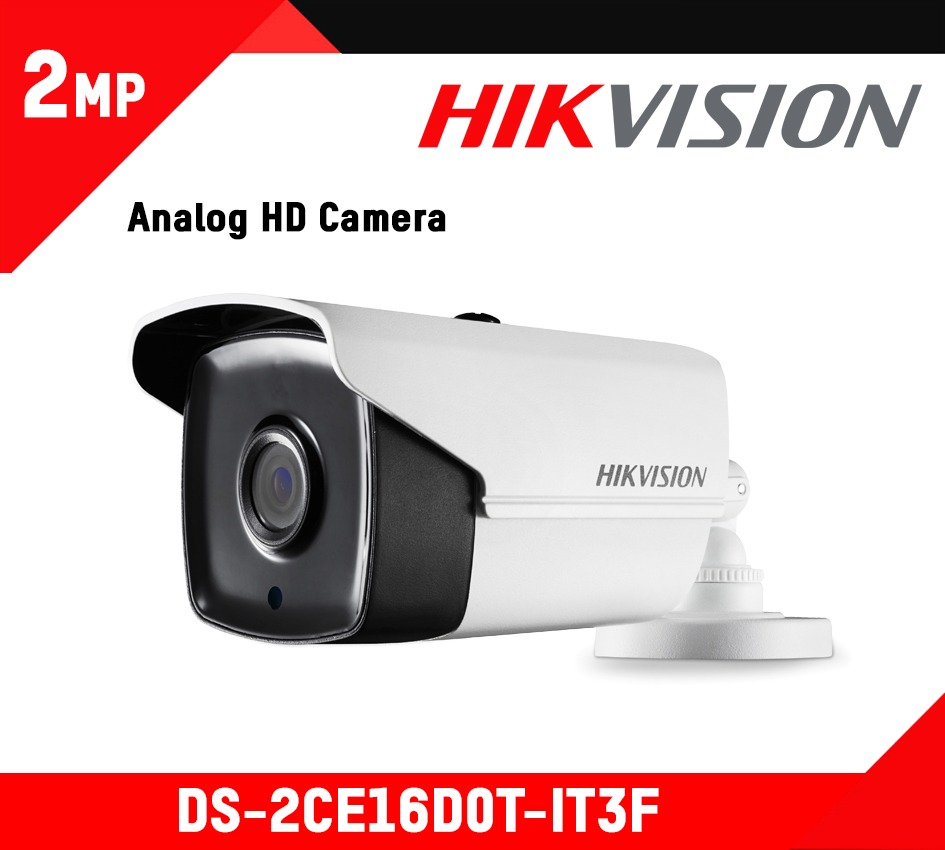

DS-2CE16D0T-IT3F – Product Description
DS-2CE16D0T-IT3F – User Manual
Camera
- Image Sensor: 2MP CMOS image sensor
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux@(F1.2,AGC ON),0 Lux with IR
- Shutter Time: 1/25 (1/30) s to 1/50,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 3.6 mm, 2.8 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
- 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
- 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
- 8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°
- 12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1°
- Lens Mount: M12
- Image Settings: Brightness, Sharpness, DNR, Mirror
- Frame Rate: PAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night Mode: Smart/color/BW(Black and White)
- Wide Dynamic Range (WDR): DWDR
- Image Enhancement: BLC
- AGC: Low/middle/high
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Front cover: Mental ,Main Body: Plastic,Bracket: Metal
- Dimension: 86.7 mm × 81.6 mm × 226 mm (3.4″ × 3.2″ × 8.9″)
- Weight: 430 g (0.95 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Language: English, Chinese
- Power Supply: 12 VDC±15%
- Consumption: Max. 4 W
- IR Range: Up to 40 m
Approval
- Protection: IP66
