Description

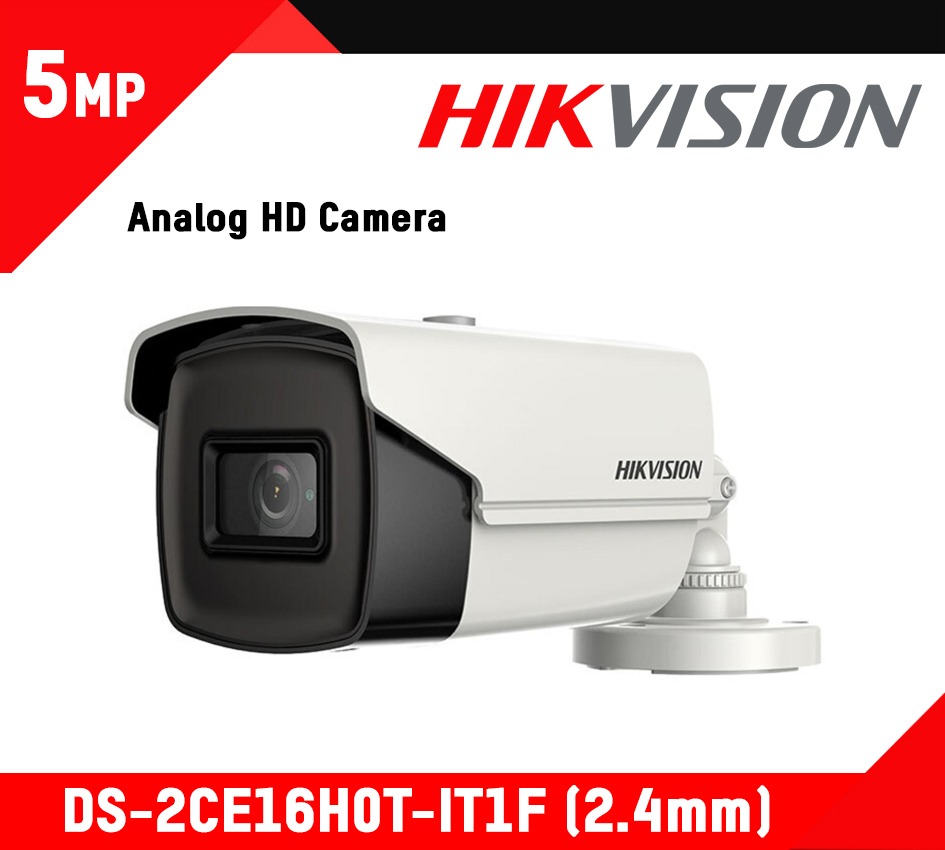

Datasheet: DS-2CE16H0T-IT1F (2.4mm)
Camera
- Image Sensor: 5 MP CMOS
- Signal System: PAL/NTSC
- Resolution: 2560 (H) × 1944 (V)
- Frame Rate
- TVI: 5M@20fps, 4M@25fps, 4M@30fps, 1080p@25fps, 1080p@30fps
- AHD: 5M@20fps, 4M@25fps, 4M@30fps
- CVI: 4M@25fps, 4M@30fps
- CVBS: PAL/NTSC
- Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Lens: 2.4 mm fixed lens
- Horizontal Field of View: 110° (2.4 mm)
- Lens Mount: M12
- Day & Night: ICR
- Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Menu
- AGC: Yes
- Day/Night Mode: Auto/Color/BW (Black and White)
- White Balance: Auto/Manual
- AE (Auto Exposure) Mode: DWDR/BLC/Global
- Noise Reduction: 2D DNR
- Language: English
- Function: Brightness, Sharpness, Mirror, Smart IR
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25%
- Power Consumption Max.: 4.3 W
- Protection Level: IP67
- Material Front Cover: Metal
- Main Body: Plastic
- IR Range: Up to 20 m
- Communication: HIKVISION-C
- Dimensions: 217.9 mm × 86.7 mm × 81.9 mm (8.58″ × 3.41″ × 3.22″)
- Weight Approx.: 408 g (0.90 lb.)
