Description
Datasheet of DS-2CE56D8T-IT3ZF
User Manual of DS-2CE56D8T-IT3ZF

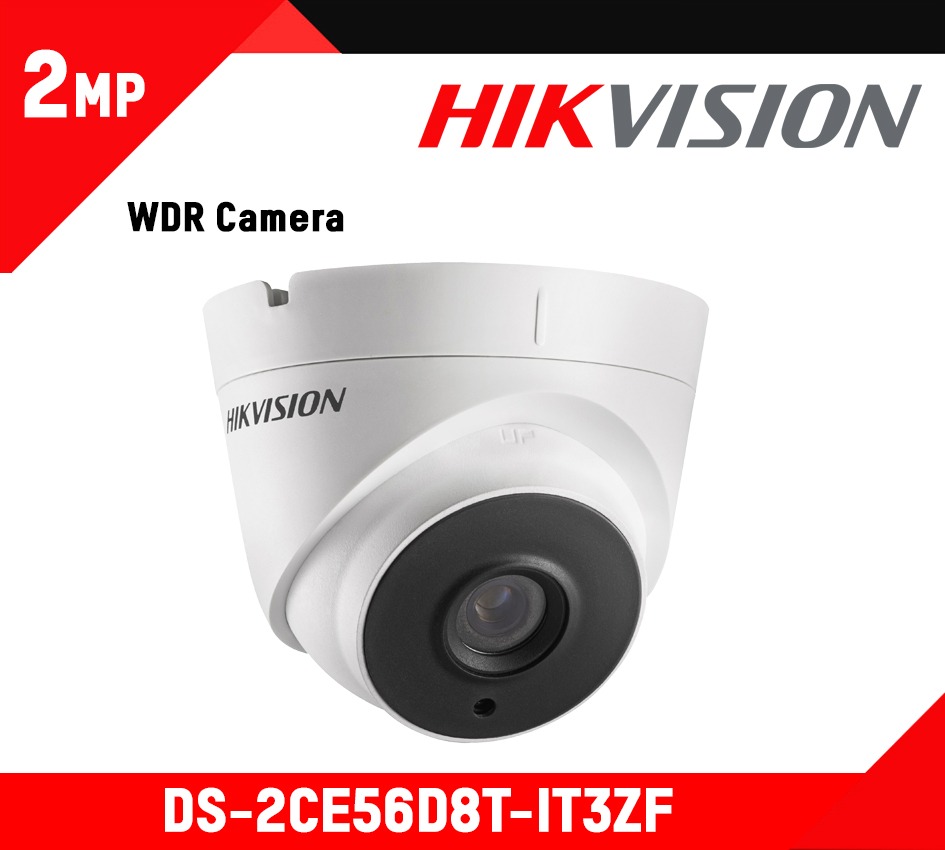

| Model | DS-2CE56D8T-IT3ZF | |
|---|---|---|
| Camera | ||
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | PAL: 1080p@25fps NTSC: 1080p@30fps |
|
| Synchronization: | Internal Synchronization | |
| Up the Coax: | Support | |
| Menu | ||
| D/N Mode: | Auto / Color / B/W | |
| Motion Detection: | 4 programmable motion areas | |
| AGC: | Support | |
| Language: | English/Chinese | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 60m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | Φ 134.3 mm × 111.35 mm (Φ 5.29″ × 4.38″) | |
| Weight: | Approx. 605 g (1.33 lb.) | |
