Description

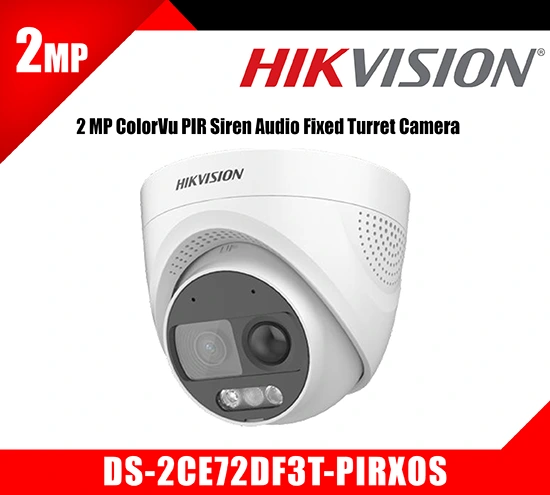

Data sheet: DS-2CE72DF3T-PIRXOS
User Manual: DS-2CE72DF3T-PIRXOS
Quick Start Guide: DS-2CE72DF3T-PIRXOS
Specification
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night: 24/7 Color Imaging
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
- Slow Shutter: Max. 16 times
Lens
- Lens Type: 2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
- 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
- Lens Mount: M12
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 20 m
- Smart Supplement Light: Yes
- Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
- Image Settings: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC
- Frame Rate: TVI: 1080p @ 25 fps/30 fps
- Day/Night Mode: Color
- Wide Dynamic Range (WDR): ≥130 dB
- Image Enhancement: WDR, BLC, HLC, Global, HLS
- Privacy Mask: 4 programmable privacy masks
- Noise Reduction: 3D DNR/2D DNR
- White Balance: Auto/Manual
Supplement Detection(PIR)
- PIR Range: 11 m
- PIR Angle: Angle : 110°
Interface
- Video Output: 1 HD analog output
- Alarm
- 1 line out Flashing Light Alarm (Red & Blue)
- Built-In Microphone: Yes
Event
- Motion Detection: 4 programmable motion areas
General
- Power: 12 VDC ± 25%, max. 9.6 W
*You are recommended to use one power adapter to supply the power for one camera.
- Material: Main body: Metal, Enclosure: Plastic
- Dimension: Ø 109.82 mm × 93.66 mm (Ø 4.3″ × 3.7″)
- Weight: Approx. 396 g (0.87 lb.)
- Operating Condition: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
- Communication: HIKVISION-C
- Language: English
Approval
- Protection: IP67
