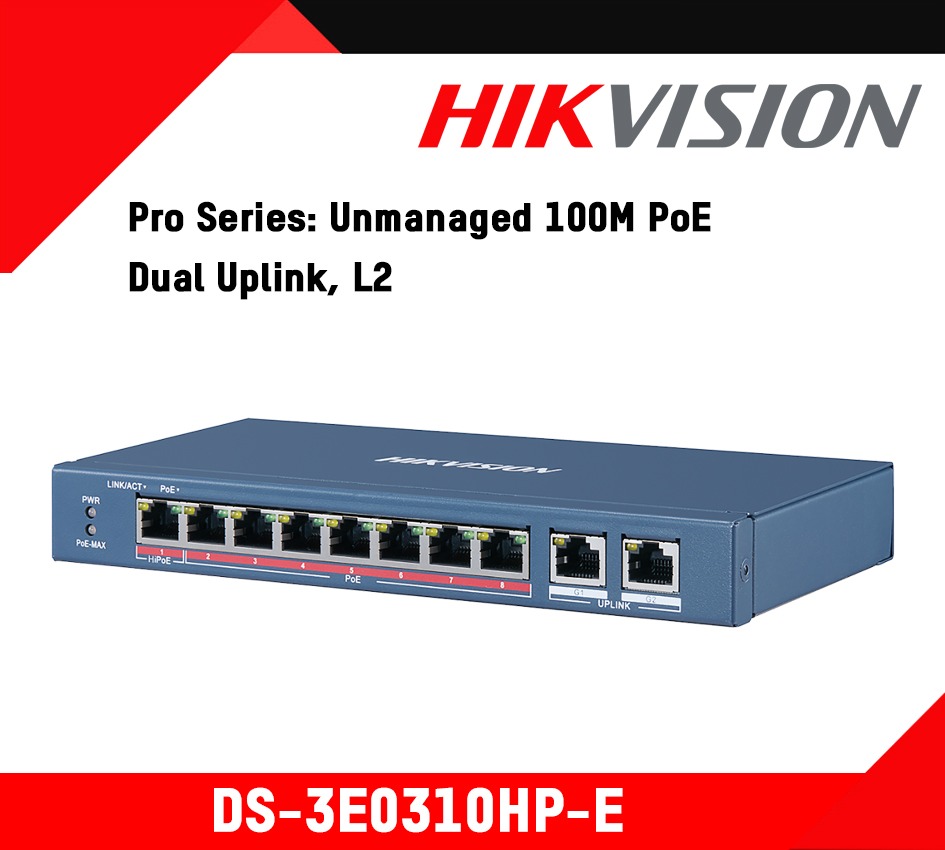

DS-3E0310HP-E

Description

Datasheet: DS-3E0310HP-E

Quick Start Guide: DS-3E0310HP-E

Specification

General

• Shell: Metal material, fan-free design
• Net Weight: 0.55 kg (1.21 lb)
• Gross Weight: 1.22 kg (2.69 lb)
• Dimensions (W × H × D): 217.6 mm × 27.8 mm × 103.55 mm (8.6” × 1.1” × 4.1”)
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Relative Humidity: 5% to 95% (no condensation)
• Power Supply: 48 VDC, 2.5 A
• Max. Power Consumption: 120 W
• Power Consumption In Idle: 10 W
• Installation Mode: Desk-Mounted,Wall-Mounted,Rack (equipped with mounting ears),Pole,Rail
• Surge Protection: 6 KV

Network Parameters

• Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
• MAC Address Table: 8 K
• Switching Capacity: 5.60 Gbps
• Packet Forwarding Rate: 4.17 Mpps
• Internal Cache: 4 Mbits

PoE Power Supply

• PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port
  • Hi-PoE: Port 1
  • PoE: Ports 2 to 8;
• Max. Port Power: 30 W
• PoE Power Budget: 110 W

Dialing Function

• Long Range
  • Ports 1 to 4: up to 300 m

    Long range performance may vary depend on camera model or cable condition.

• Port Isolation: /
• PoE Watchdog: /

Approval

• EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry: CE-RoHS (2011/65/EU)
