Description

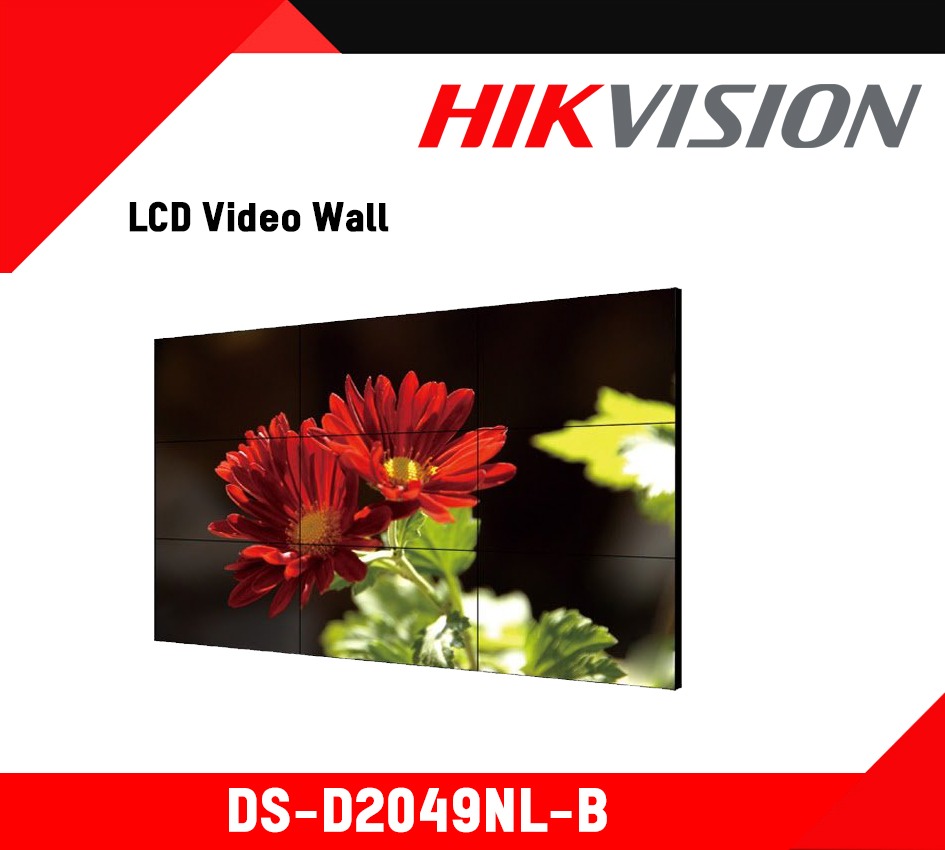

User Manual : DS-D2049NL-B
Datasheet : DS-D2049NL-B
| Display | |
|---|---|
| Visual Angle | Horizontal:178°, Vertical:178°(CR≥10) |
| Screen Moving Area (H×V) | 1073.8mm(H)×604.0(V)mm |
| Response Time | 8ms (G to G) |
| Resolution | 1920×1080 |
| Dot Pitch (H×V) | 0.56mm |
| Diagonal Size (Inch) | 49″ |
| Contrast | 166.66736111111112 |
| Color Saturation | 0.92 |
| Color | 10Bit(D), 1.07 Billion colors |
| Brightness | 500cd/m2 |
| Backlight | LED Backlight (Direct type) |
| Interface | |
| Input Interface | VGA×1, DVI×1, BNC×1, YPbPr×1, HDMI×1 |
| Output Interface | VGA×1, DVI×1, BNC×2 |
| Control Interface | RJ45 for RS-232 |
| Working Environment | |
| Working Life | ≥60,000 Hours |
| Operating Temperature | 0℃~40℃ |
| Operating Humidity | 10%~85% (No Condensation) |
| Power | |
| Power Requirement | 100~240VAC,50/60HZ |
| Power Consumption | 134W |
| Physical Features | |
| Dimension (W×H×D) | 1077.6mm×607.8mm×113.57mm (W×H×D) |
| Frame Width | 2.3mm (Left/Upper), 1.2mm (Right/Lower) |
| Side Frame Size | |
| Physical Seam | 3.5mm |
