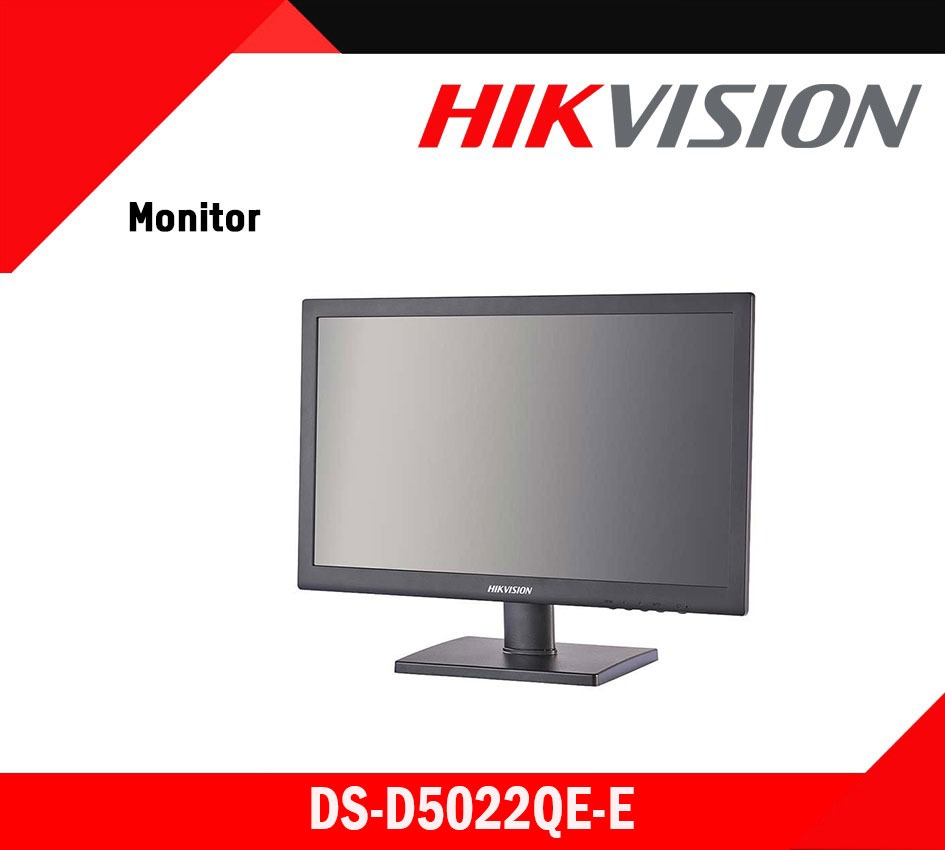

DS-D5022QE-E

Description

Datasheet: DS-D5022QE-E

User Manual: DS-D5022QE-E

General

• Loudspeaker: NA
• VESA: M4, 100 mm × 100 mm
• Dimensions(W*H*D): 511mm × 377mm × 170mm(with base)/ 511mm × 313mm × 46mm
• Packing Dimensions(W*H*D): 565mm × 435mm × 105mm
• Gross Weight: 4.0kg
• Net Weight: 3.2 kg
• Storage Temperature: -20 to 60 º C (-4 to 131º F)
• Power Supply: 100 to 240 VAC, 50/60Hz
• Working Temperature: 0 to 40 º C (32 to 104 º F)
• Working Humidity: 10 to 90 %
• Storage Humidity: 5 to 95%
• Standby Power Consumption: ≤ 0.5 W
• Power Consumption: ≤ 30W
• Color Of Casing: Black

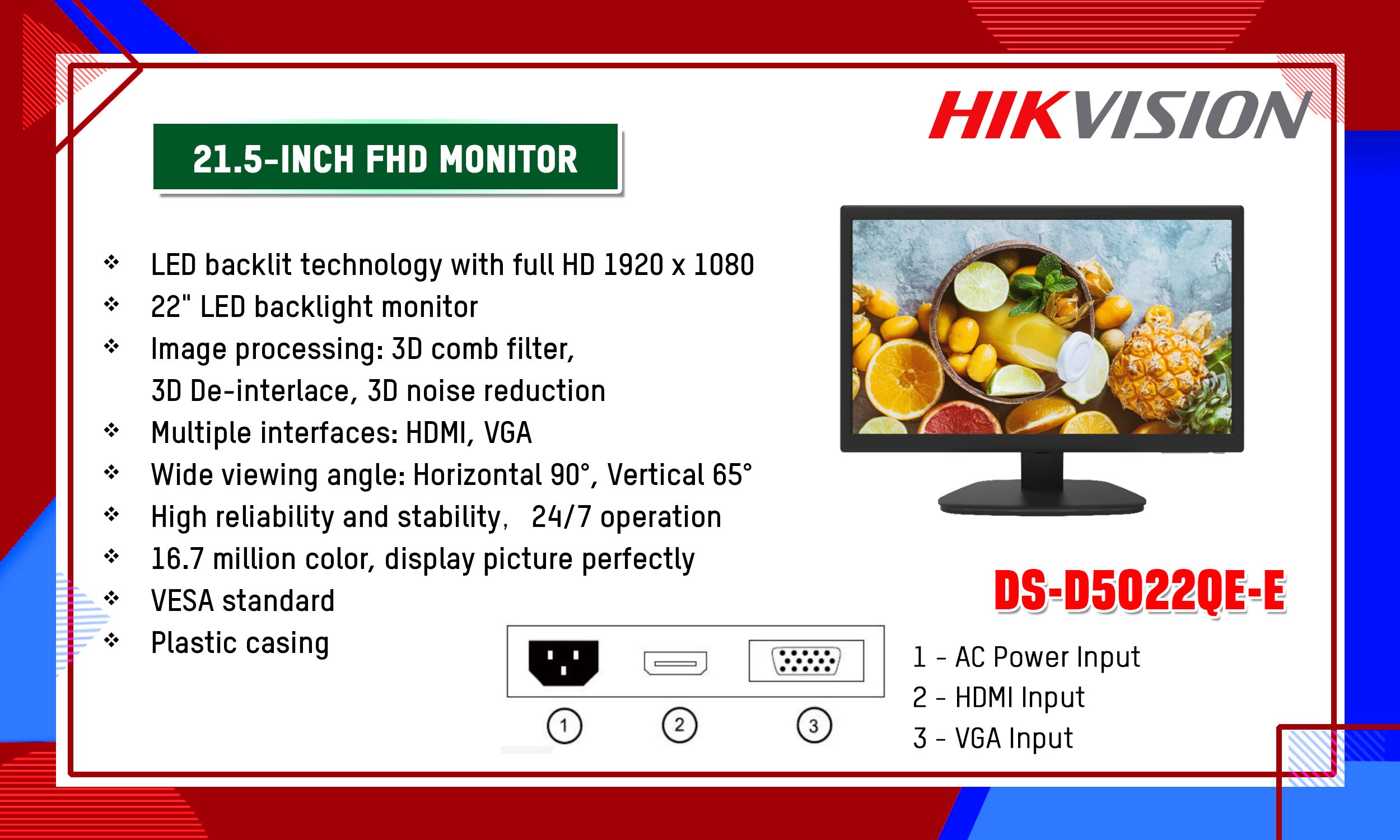

Interfaces

• HDMI Input: 1
• VGA Input: 1

Accessories

• Power Cord: 1
• User Manual: 1
• VGA Cable: 1

Monitor

• Backlight: TFT-LED Backlight
• Screen Size: 21.5 inch
• Pixel Pitch: 0.24825 mm (H) × 0.24825 mm (V)
• Max Resolution: 1920 ×1080@60Hz
• Brightness: 200 cd/m²
• Contrast: 600: 1
• Response Time: 5ms
• Color: 16.7M
• Active Area: 476.64mm× 268.11mm
• Viewing Angle: Horizontal 90°, vertical 65°

Bracket

• Pedestal: Contain 1
• Wall Mounted: Optional DS-DM1940W
