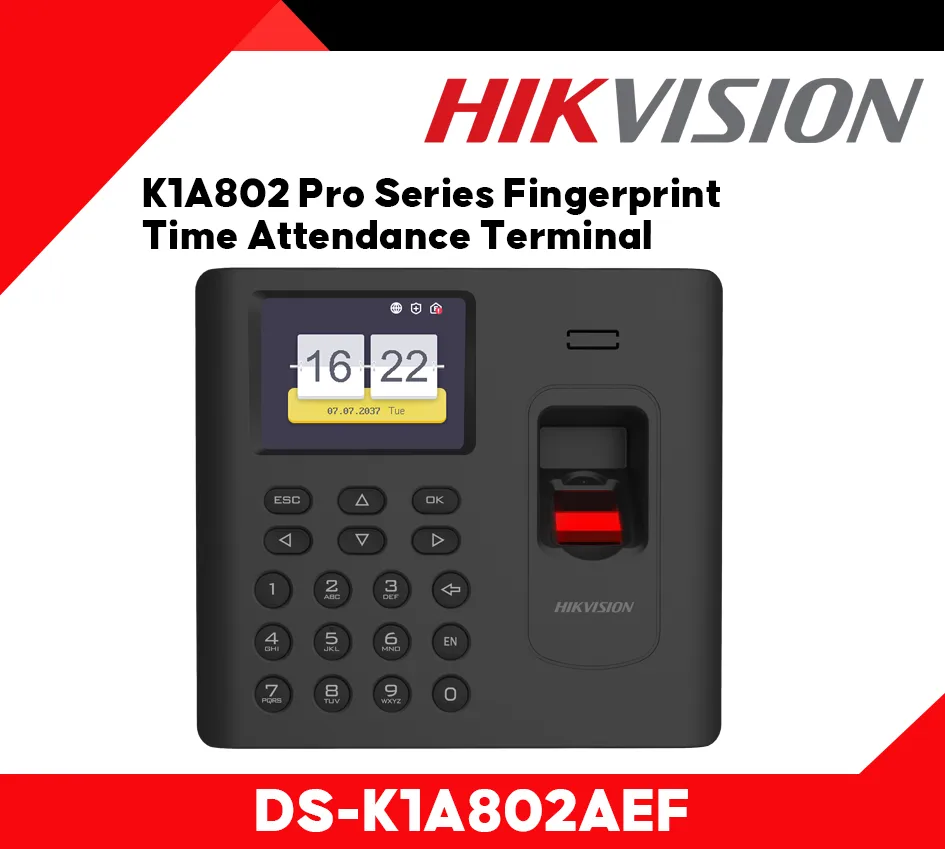

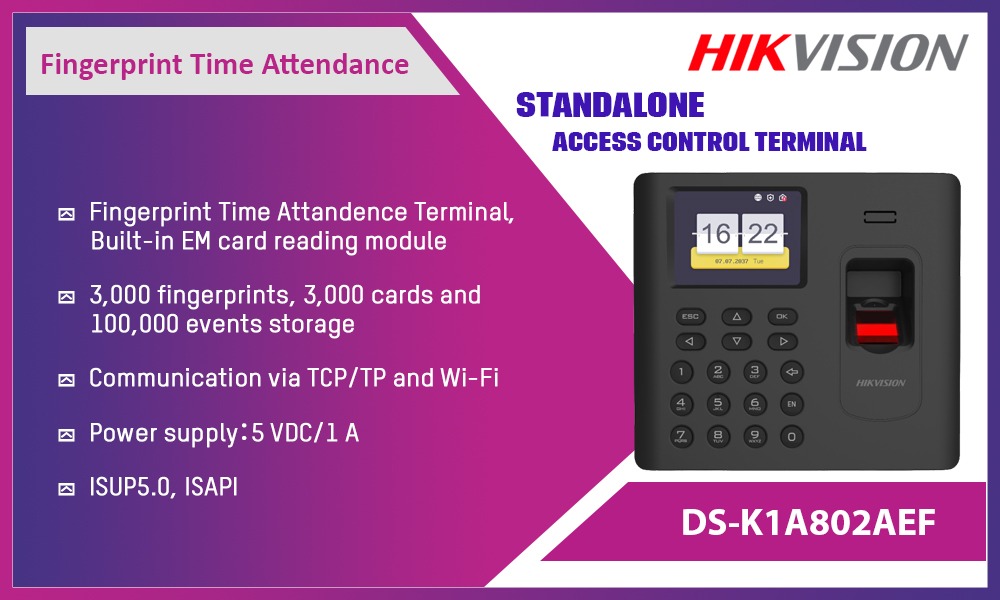

DS-K1A802AEF

Description

Datasheet: DS-K1A802AEF

Display

• Screen Size: 2.4-inch
• Type: LCD-TFT display screen

Audio

• Audio Output: 1 loudspeaker, 1 buzzer

Network

• Wired Network: TCP/IP, 10/100Mbps, self-adaptive
• Wi-Fi: Support

Interface

• Network Interface: 1
• USB: 1

Capacity

• Card Capacity: 3000
• Fingerprint Capacity: 3000
• Event Capacity: 100,000

Authentication

• Card Type: EM card
• Reading Distance: 0 to 5 cm
• Card Reading Duration: ＜ 1 s
• Fingerprint Module: Optical fingerprint module
• Comparing Mode: 1:1 and 1:N
• Fingerprint Recognition Duration: ＜ 1 s

General

• Indicator: Power/status (red/green)
• Power Supply: 5 VDC/1 A
• Working Temperature: -10 °C to +55 °C (14 °F to +131 °F)
• Working Humidity: 10% to 90% (no condensing)
• Color: Black
• Dimensions: 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
• Application Environment: Indoor
• Installation: Surface mounting, desk stand
