Description

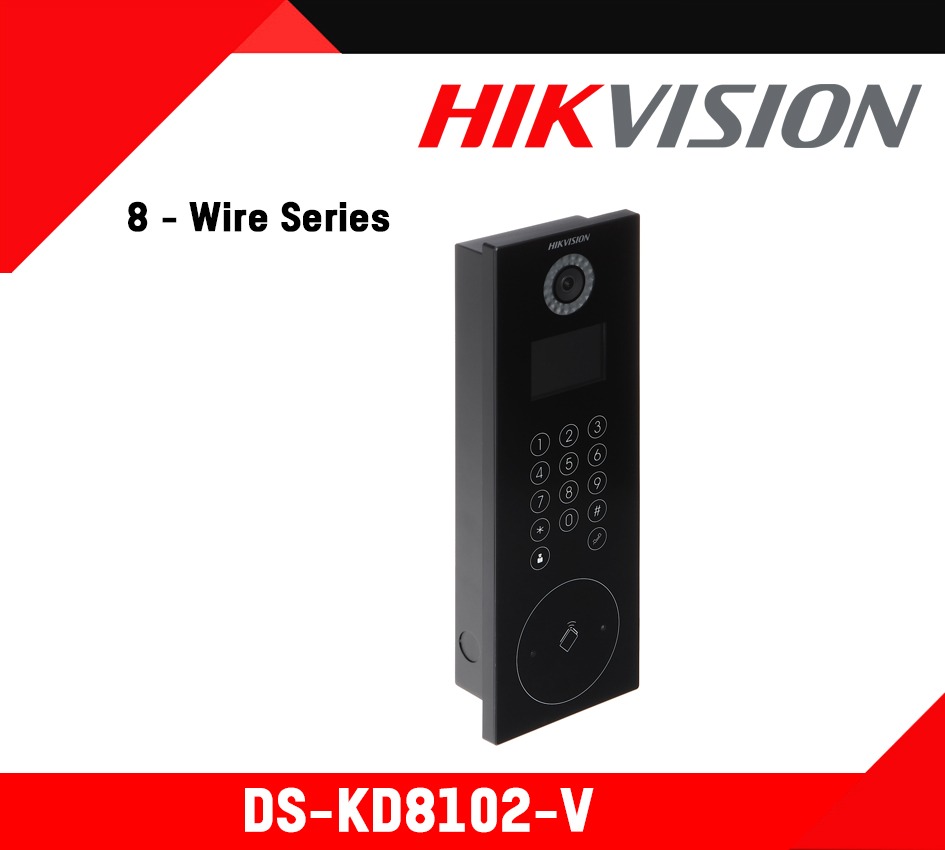

Datasheet: DS-KD8102-V
User Manual: DS-KD8102-V
System Parameters
- Processor: High-Performance Embedded SOC Processor
- Operation System: Embedded Linux Operation System
Network Parameters
- Ethernet: 10/100/1000 Mbps Self-Adaptive Ethernet
- Network Protocol: TCP/IP, RTSP
Device Interfaces
- Network Interface: 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
- I/O Input: 8
- I/O Output: 4
- RS-485: 1 RS-485 Half-Duplex Port
- Wiegand: 1 Wiegand Port for Accessing Wiegand IC Card Reader
- USB: 1 USB 2.0, Supporting U-Disk
General
- Power Supply: 12 VDC
- Power Consumption: ≤15 W
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 90%
- IP Protection Level: IP65
- Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
- Dimensions(L × W × H): 418 mm × 145 mm × 61 mm (16.5″ × 5.7″ × 2.4″)
- Material: Plastic
