Description
Datasheet: DS-KV8213-WME1 / Flush
User Manual: DS-KV8213-WME1 / Flush

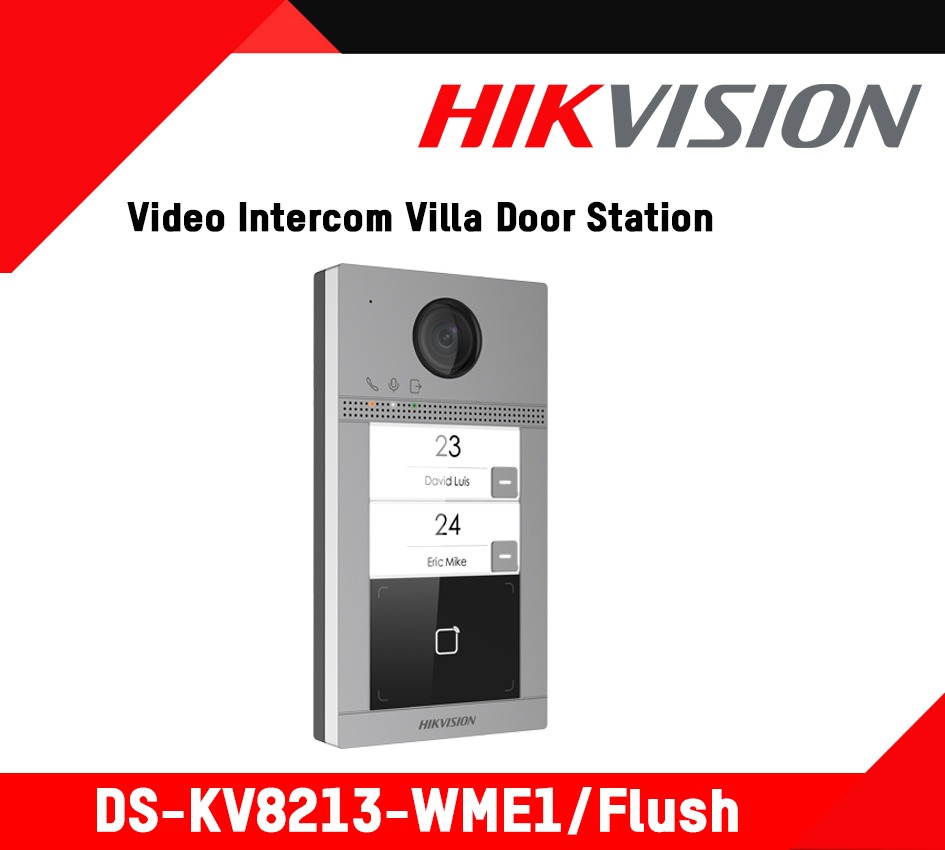

| Model | DS-KV8213-WME1 / Flush |
|---|---|
| Flash drive | 32 MB |
| RAM | 256 MB |
| Method of work | Two-button panel |
| Operating system | Embedded Linux OS |
| Camera | 2 megapixel HD camera |
| The night vision | Low light operation Optional IR illumination: 3m |
| BLC | Supported |
| DNR | Supported |
| WDR | True WDR |
| Viewing angle | Horizontal: 129 °, Vertical: 75 ° |
| Video compression standard | H.264 |
| Flow | Main Stream: 1080p @ 30fps, 720p @ 25fps Sub Stream: D1 @ 25fps |
| Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
| Motion Detection | Supported |
| Anti-Flicker, frequency | 50 Hz, 60 Hz |
| Audio intercom | Two-way audio communication |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in speaker |
| Audio compression standard | G.711 U |
| Audio stream rate | 64 kbps |
| Improving sound quality | Noise and echo cancellation |
| Wired network | 10/100 M Ethernet |
| Network protocol | TCP / IP, RTSP |
| Reading frequency | 13.56 MHz |
| Card type | Mifare |
| Relay | 2 |
| RS-485 | one |
| Wi-Fi | 2.4G Wi-Fi |
| Service port | one |
| TF card | Max. 128 GB |
| Alarm input | four |
| Earthing | one |
| Tamper | one |
| Physical button | 2 |
| Protection level | IP65, IK08 |
| Indicator | 3 |
| Food | IEEE802.3af Standard PoE DC 12V |
| Power consumption | less than 10 W |
| Heater | Supported |
| Working temperature | -40 to +53 ° C |
| Working humidity | 10 to 95% |
| Installation | Flush mount (junction box in box) |
| Dimensions (edit) | 174 x 91 x 29 mm |
