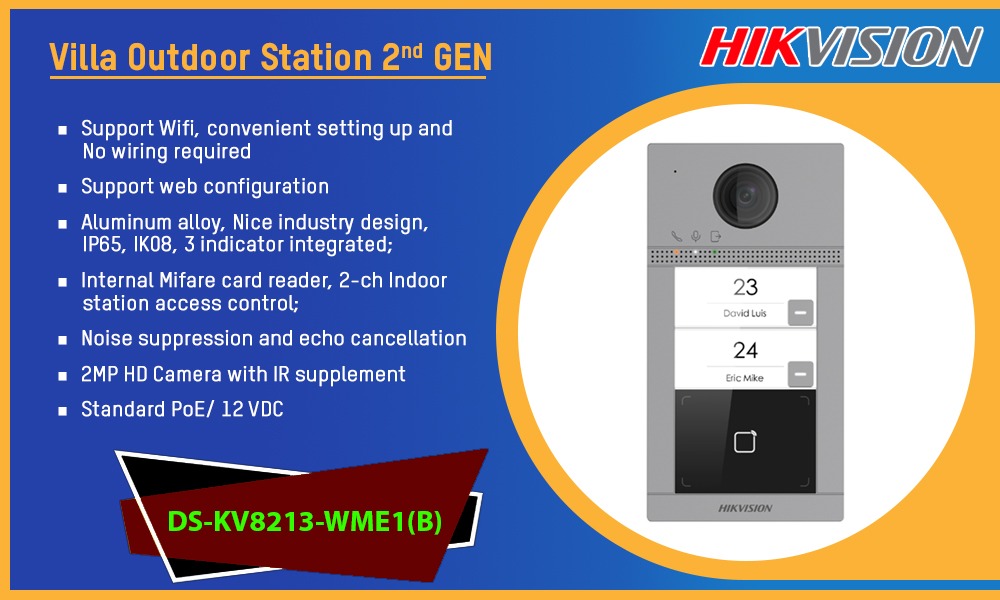

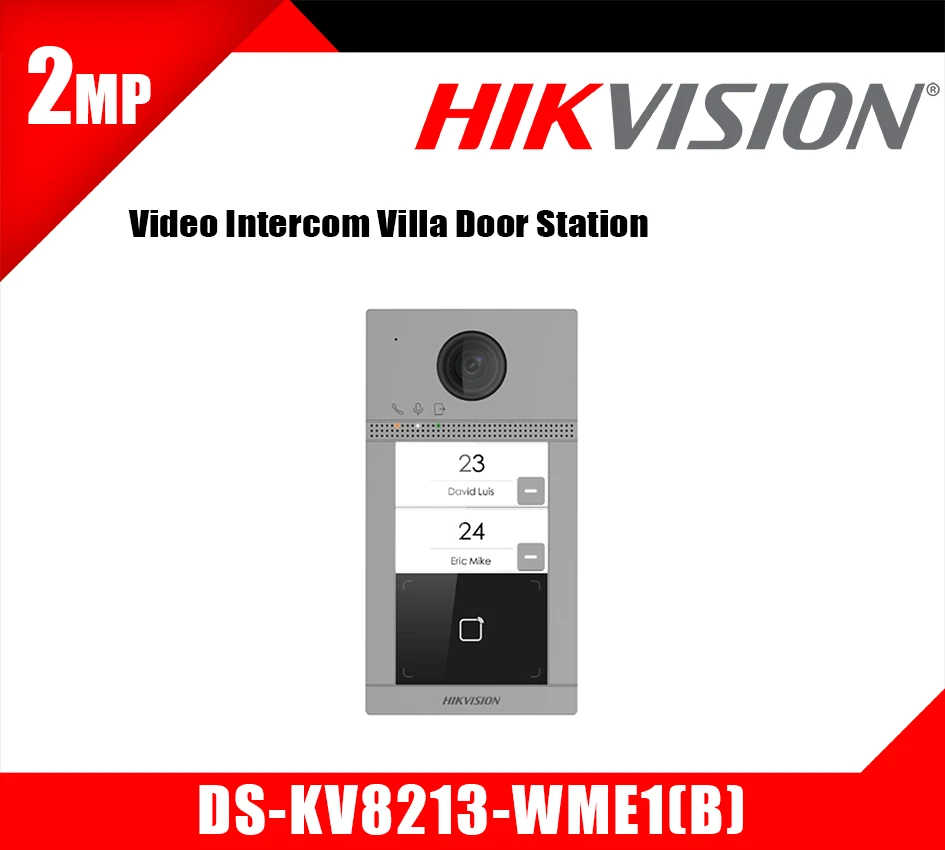

DS-KV8213-WME1(B)

Description

Datasheet: DS-KV8213-WME1(B)

User Manual: DS-KV8213-WME1(B)

Quick Start Guide: DS-KV8213-WME1(B)

System Parameters

• Operating System: Embedded Linux operation system
• ROM: 32 M
• RAM: 256 M
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: /
• Operation Method: /
• Type: /
• Resolution: /

Video Parameters

• Video Standard: H.264
• Supplement Light: Low illumination IR supplement mode:3 m
• Lens: 1
• FOV: Horizontal: 129° Vertical: 75°
• WDR: Support
• Resolution
  • Main stream : 1920 × 1080
  • Sub stream : 720 × 480

Audio Parameters

• Audio Compression Standard: G.711 U
• Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (More than 85 dB within 20 cm)
• Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• Fingerprint Capacity: /
• User Capacity: 2000
• Face Capacity: /
• Linked Indoor Station Capacity: 2
• Event Capacity: /

Network Parameters

• Communication Protocol: TCP/IP, RSTP
• Wired Network: 10/100 Mbps self-adaptive Ethernet
• Wi-Fi: /
• Bluetooth: /
• 3G/4G: /

Device Interfaces

• Alarm Input: 4
• Network Interface: 1
• TAMPER: 1
• Exit Button: 2
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: 0
• Alarm Output: /
• Lock Control: 2
• Door Contact Input: 2
• Power Interface: 1
• General
• Button: 2
• Installation: Surface mounting/ Flush mounting
• Indicator: 3
• Weight: 385 g
• Protective Level: IP65, IK08
• Power Supply Method: 12 VDC, IEEE802.3af, standard PoE
• Working Temperature: -40° C to +55° C(-40° F to 131° F)
• Working Humidity: 10% to 95%
• Dimensions: 174 mm × 91 mm × 29 mm
• Battery: /
• Application Environment: Outdoor
• Power Consumption: ＜ 10 W
