Description

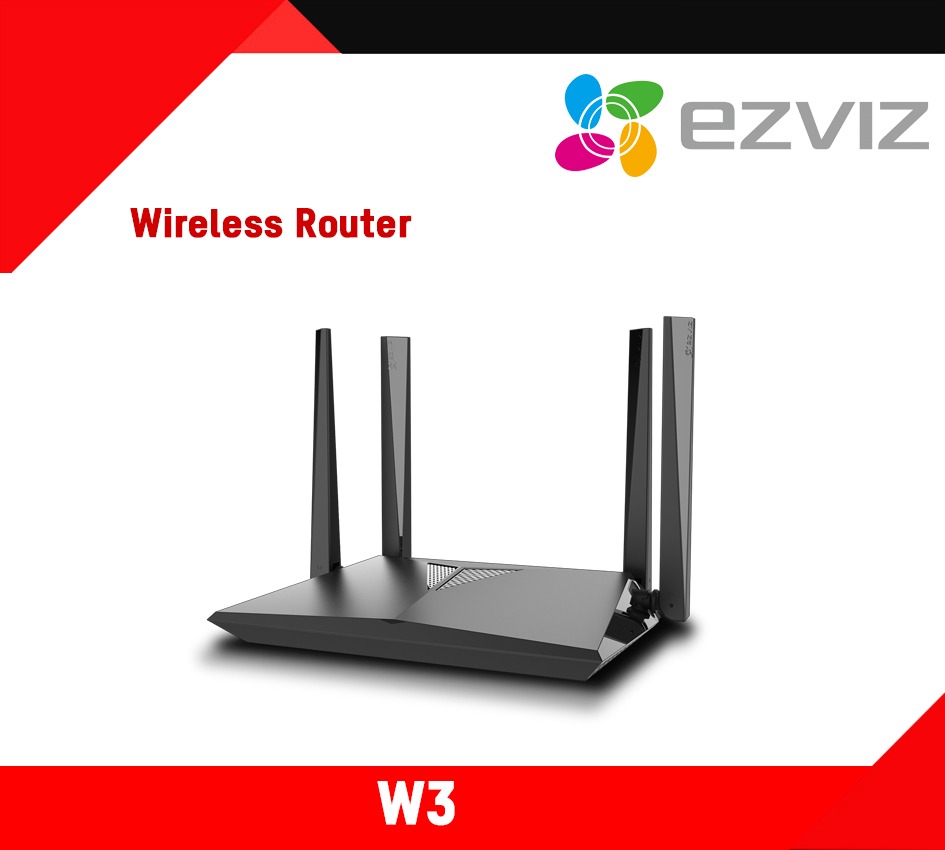

| Model | W3 | Network Interface | 3 RJ-45 10/100/1000 Mbps Self-adaptive Ethernet LAN interfaces； 1 RJ-45 10/100/1000 Mbps Self-adaptive Ethernet WAN interface； |
|---|---|
| Wireless Interface | Supports simultaneous dual-band 2.4Ghz and 5Ghz connections. The actual available channels may vary according to local regulations where the device was sold. Theoretical maximum rate 1266M (400M+866M): 802.11b/g/n+ max:400Mbps, 802.11a/ac max:866Mbps |
| CPU | Qualcomm Quad Core @ 716 MHz (Maximum) |
| RAM | 128MB |
| Flash | 16MB |
| Antenna | 4 external @ 5dB max |
| HDD | NOT supported |
| USB | NOT supported |
| Indicator | One System LED |
| Button | One-touch access. Hold 6 seconds to RESET. |
| Power | DC 12V 1.0A, typical power consumption < 10 watts The adapter supports a wide voltage range from 100V~240V |
| Working Temperature and Humidity | 0 °C to +40 °C, 10% to 90%. Indoor use only |
| Product Dimensions | 200mm x 150mm x 33mm |
| Packaging Dimensions | 295mm x 285mm x 96mm |
| Antenna Length | 160mm |
| Weight | TBA |
