Description

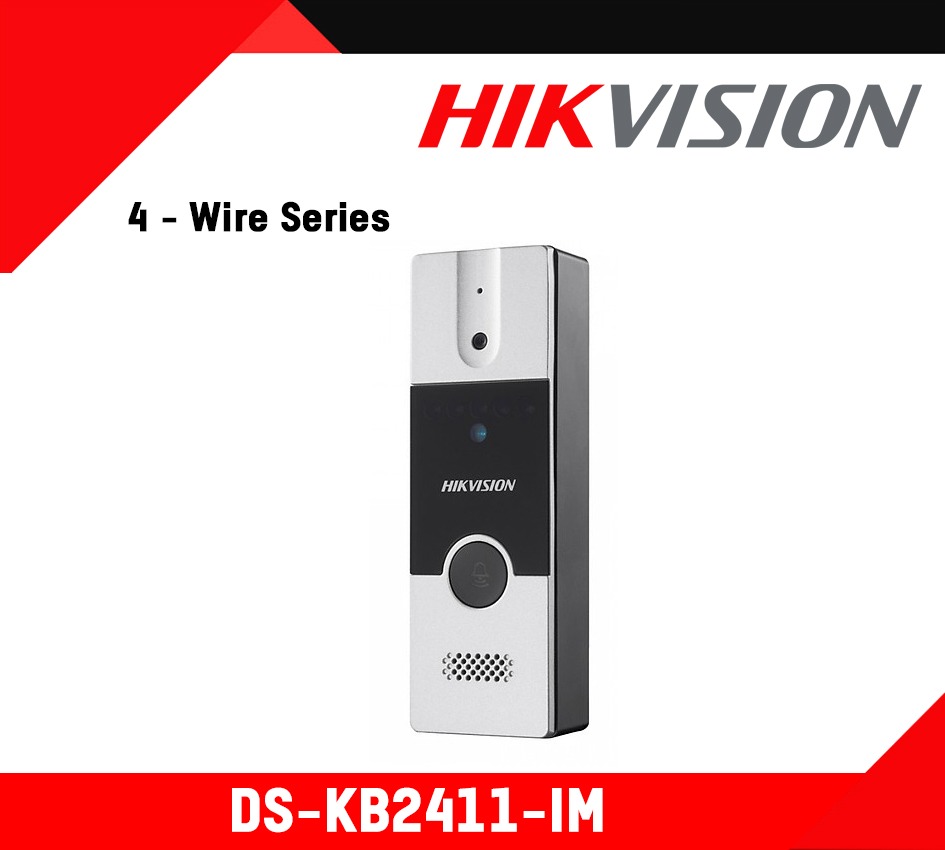

Datasheet: DS-KB2411-IM
User Manual: DS-KB2411-IM
Video Parameters
- Camera: 1/4″ CMOS
- Resolution: 720 × 576
- Video Frame Rate: PAL: 25 fps
Audio Parameters
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Loudspeaker
- Audio Quality: Noise Suppression and Echo Cancellation
Device Interfaces
- Four-Wire Interface: 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio,Input/Output, 1-ch Power Supply, 1-ch Grounding)
- I/O Output: 1 Relay Output
General
- Power Supply: 12 VDC
- Power Consumption: ≤5 W
- Working Temperature:-10° C to + 55° C (14° F to 131° F)
- Working Humidity: 10% to 90%
- Dimensions (L X W X H): 128 mm × 42 mm × 24.8 mm (5.0″ × 1.7″ × 0.9″)
- Material: Aluminum Alloy
