Description
General
- Core Color: 1 Blue & White/ Blue 2 Orange & White/ Orange,3 Green & White/ Green 4 Brown & White/ Brown,

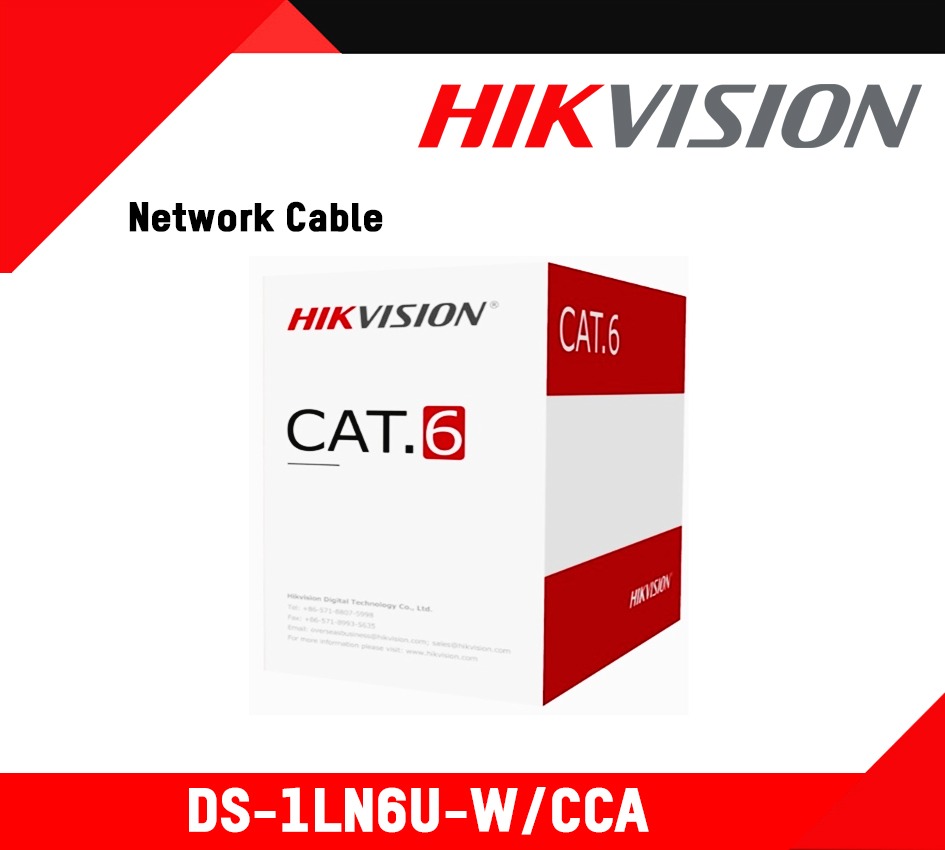

- Packing: Carton
- Carton Dimension: 41x41x24cm
- Packing Length: (305±1.5)m
- Rip-Cord: Yes
- Drain Wire: No
- Sheath Physical Properties
- Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d
- After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%, Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
- Electrical Characteristics (20℃): 1.0-100.0MHz Impedance(Ω) 100±15,100 – 250MHz Impedance(Ω) 100±25,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor Resistance Unbalance(%) max 2,
Conductor
- Material: CCA（Copper content：27%）
- Nom.O.D.(Mm): 0.585±0.01
Insulation
- Material: Solid HDPE
- Diameter: 1.05±0.05mm
Sheath
- Thickness: 0.50±0.05 mm
- External O.D.: 6.0±0.30 mm
- Surface: Clean, Frap, Satiation
- Material: FR-PVC(complies RoHS)
- Color: White RAL9003
Surface Printing
- Letter Height: 2.5±0.2mm
- Color: Black
- Print Error & Space: ≤±0.5%，1m
