Description

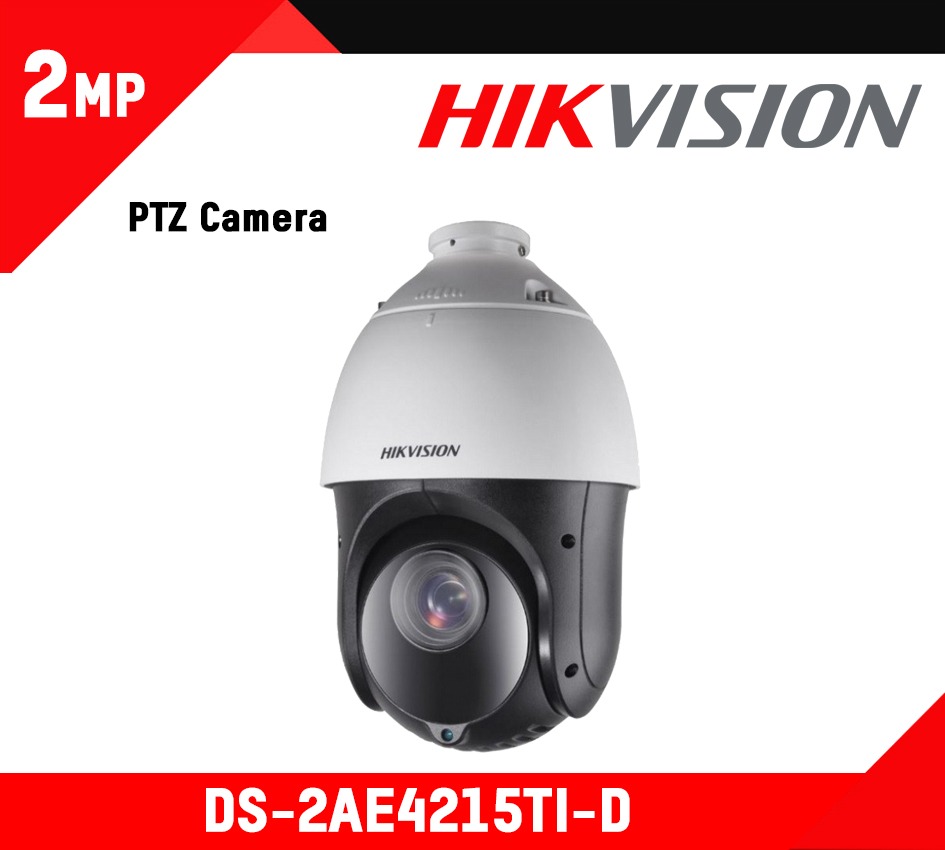

Datasheet: DS-2AE4215TI-D
User Manual: DS-2AE4215TI-D
Lens
- FOV: 10 mm to 1500 mm (wide to tele)
- Zoom Speed: Approx. 2.4 s (optical, wide to tele)
- Working Distance: 360° endless
- Aperture Range: F 1.6 to F 3.5
- Horizontal Field Of View: 53.8° to 4.0° (wide-tele)
- Focal Length: 5 mm to 75 mm, 15× Optical
- Max. Resolution: 1920 × 1080
Camera Module
- Frame Rate: 50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
- AGC: AUTO/MANUAL
- DNR: 3D DNR
- Regional Focus: Yes
- Image Sensor: 1/2.8″ progressive scan CMOS
- Model: DS-2AE4215TI-D(C)
- Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 lux with IR
- White Balance: AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
- Shutter Time: PAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
- Day & Night: IR cut filter
- Digital Zoom: 16×
- Privacy Mask: 8 programmable privacy masks
- Focus Mode: Auto/Semiauto/Manual
- WDR: ≥ 120 dB
- BLC: Yes
- HLC: Yes
- EIS: Yes
PTZ
- Movement Range (Pan): -15° to 90° (auto flip)
- Pan Speed: Pan manual speed: 0.1° to 80°/s,Pan preset speed: 80°/s
- Movement Range (Tilt): 10 patrols, up to 32 presets per patrol
- Tilt Speed: Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
- Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
- Presets: 256
- Patrol Scan: 5 patterns, with the total recording time no less than 10 minutes
- Power-Off Memory: Yes
