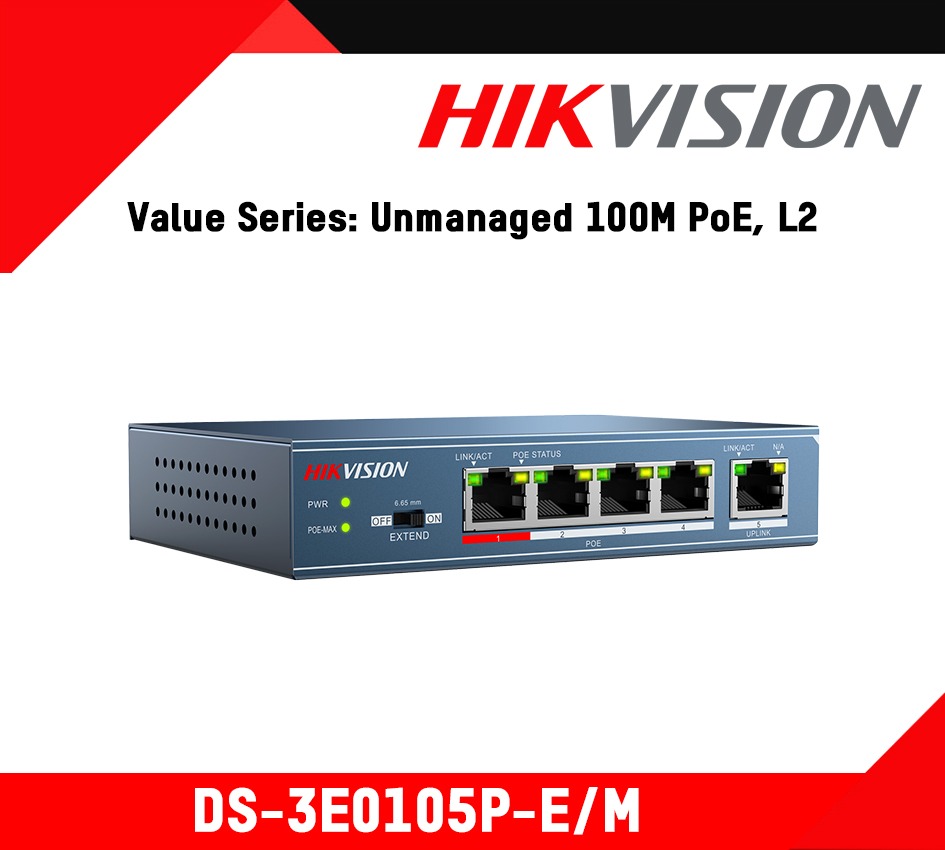

DS-3E0105P-E/M Hikvision Value Series Unmanaged 100M PoE, L2 Colombocctv.com Srilanka
DS-3E0105P-E/M
Availability: not in Stock

DS-3E0105P-E/M

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 10/100 Mb/s 5-port PoE desktop type switch
  • Four ports support Power over Ethernet (PoE) function
  • PoE powering possibility
  • universal and easier to install
  • All ports support 6 kV lightning protection
Categories:

Description


Datasheet: DS-3E0105P-E/M

User Manual: DS-3E0105P-E/M

Model DS-3E0105P-E/M
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
LAN ports:
  • 1 x RJ45 100 Base-T – Uplink,
  • 4 x 10/100 Base-T ( 4 x PoE (802.3af) )
LED diodes: Power, PoE, Link/Act
Transmission speed: 10 / 100 Mbps : 1 Port LAN + 4 LAN & PoE ports
Maximal output power: 15 W / port PoE
Maximal total power: 38 W
MAC addresses table: 1k  – Auto update of MAC addresses table
Operation modes:
  • Extend On : 250 m, 10 Mbps @ UTP cat. 5e, 6 – 1 … 4 ports
  • Extend Off : 100 m, 100 Mbps @ UTP cat. 5e, 6
Certificates: CE
Operation temp: 0 °C … 40 °C
Power supply: 48 V DC / 800 mA (power adapter included)
Weight: 0.20 kg
Dimensions: 132  x 95  x 28 mm
