Compression Standard

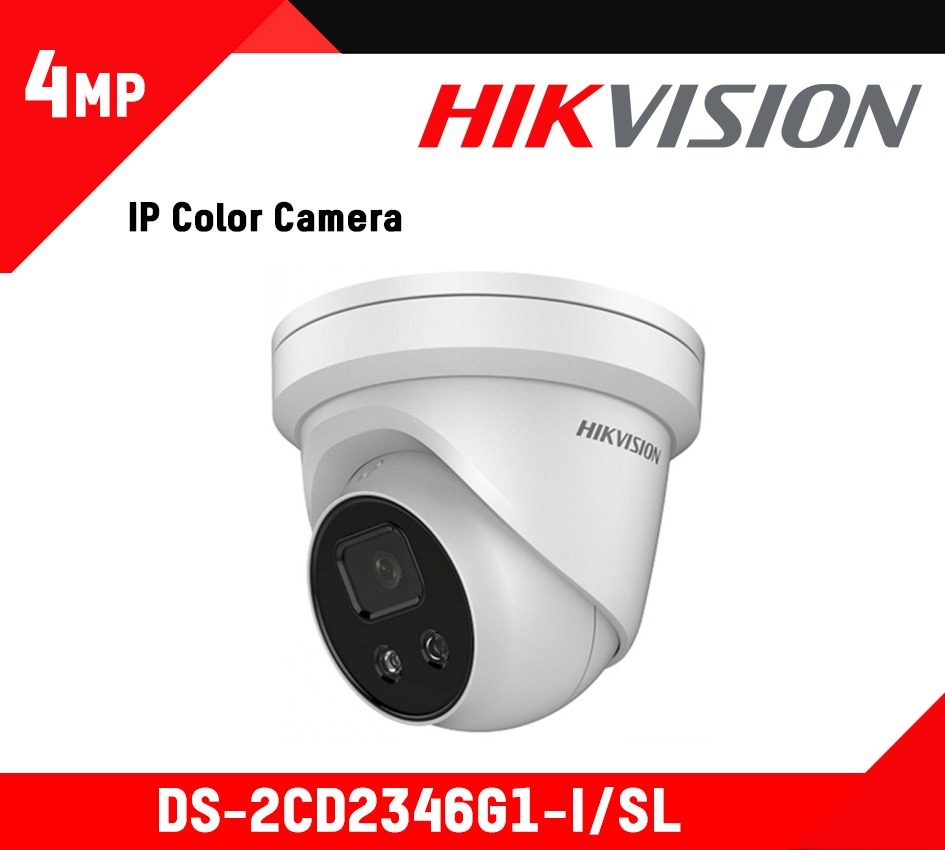

| Model | DS-2CD2346G1-I/SL |
|---|---|
| Camera | |
| Image Sensor: | 1/2.7” Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124° 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58° 8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Focus: | Fixed |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | 32Kbps~16Mbps |
| Image | |
| Max. Image Resolution: | 2688 × 1520 |
| Frame Rate: | 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fp s(1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement: | BLC/3D DNR/HLC |
| Image Settings: | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| BLC: | Support |
| ROI: | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch: | Day/Night/Auto/Schedule |
| Network | |
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function: | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Audio: | Built-in speaker, max sound pressure level: 96dB |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| Smart Feature-set | |
| Behavior Analysis: | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm reduction by human and vehicle target classification based on deep learning When H265+, three streams or motion detection is enabled, the behavior analyses (including line crossing detection, intrusion detection, region entrance detection and region exiting detection) are not supported. |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Region Entrance: | Enter a pre-defined virtual region from the outside place |
| Region Exiting: | Exit from a pre-defined virtual region |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) |
| Power Consumption: | 12 VDC, 0.92 A, Max：11W PoE：(802.3af, 36V-57V), 0.34 A to 0.21 A，Max：12W |
| IR Range: | Up to 30m |
| Dimensions: | Camera: Φ 138.3 × 126.3 mm (Φ 5.4″ × 5″) With package: 170 × 170 × 150 mm (7″ × 7″ × 5.9″) |
| Weight: | Camera: 430 g (0.9 lb.) With package: 733 g (1.6 lb.) |
