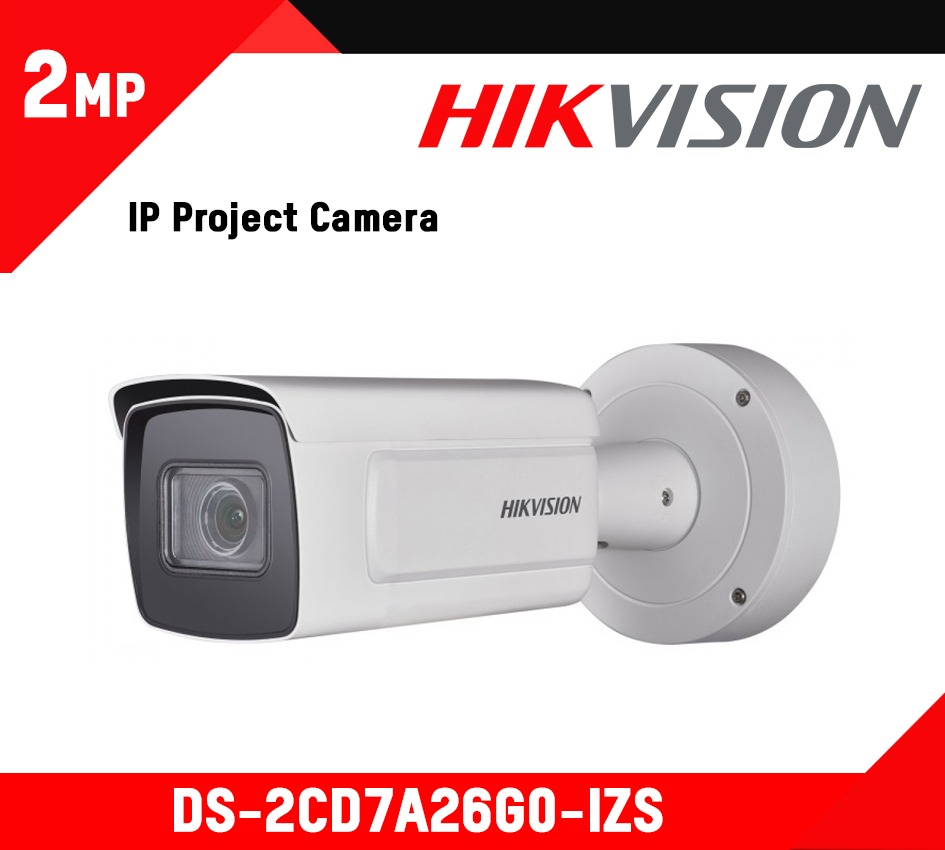

DS-2CD7A26G0-IZS

Description

Data sheet: DS-2CD7A26G0-IZS

Camera

• Image Sensor: 1/1.8ʺ Progressive Scan CMOS
• Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/100,000 s
• Slow Shutter: Yes
• Angle Adjustment: Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
• WDR: 140 dB
• Day & Night: IR cut filter
• Lens: Aperture2.8 to 12 mm: F1.2 8 to 32 mm: F1.6
• Focus: Auto, semi auto, manual
• FOV: 2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
• Lens Mount: Integrated
• Lens Type: 2.8 to 12 mm and 8 to 32 mm optional

Illuminator

• IR Range: 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
• Wavelength: 850 nm

Video

• Max. Resolution: 1920 × 1080
• Main Stream: 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream: 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264+: Main stream support
• H.265+: Main stream support
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Audio Compression: No
• Audio Bit Rate: No
• Environment Noise Filtering: No
• Audio Sampling Rate: No

Smart Feature-Set

• Premier Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Region Of Interest: 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
• Statistics: No
• Exception Detection: Scene change detection, defocus detection
• Accuracy: Capture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
• Blacklist And Whitelist: Max. 10,000 records
• No License Plate Detection: Yes
• Motorcycle LPR: Yes (only applicable to checkpoint)


• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Target Cropping: Yes
• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network

• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• APION: VIF (PROFILE S, PROFILE G), ISAPI, SDK
• Security: Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Clienti: VMS-4200, Hik-Connect, iVMS-5200, Hik-Central
• Web Browser: Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+

Interface

• Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Audio: No
• Alarm: 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Video Out: 1Vp-p composite output (75 Ω/CVBS), only for adjustment
• Firmware Version: 5.5.60

General

• General Function: One-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 20%, two-core terminal block；PoE (802.3at, class 4）
• Material: Aluminum alloy
• Dimensions: Camera: Φ140 × 351 mm (Φ5.5″ × 13.8″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
• Weight: Camera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.)
• Power Consumption And Current: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A

Approval

• Protection: IP67, IK10
