Description

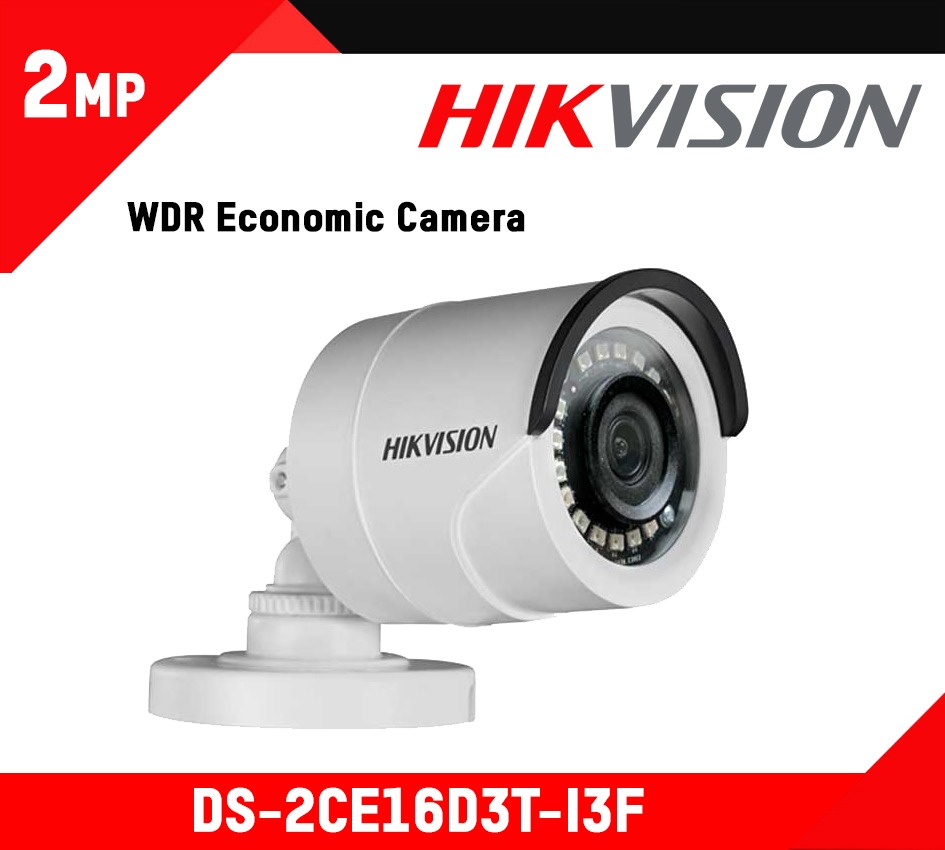

Quick Start Guide : DS-2CE16D3T-I3F
Camera
- Image Sensor : 2.0 megapixel progressive scan CMOS
- Signal System : PAL/NTSC
- Video Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Resolution 1920 (H) ×1080 (V)
- Min. Illumination 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Slow Shutter Max. 16×
- Lens 2.8 mm, 3.6 mm, 6 mm
- Horizontal Field of View 106°(2.8 mm), 82°(3.6 mm), 51°(6 mm)
- Lens Mount M12
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Synchronization Internal synchronization
- WDR (Wide Dynamic Range) ≥ 120 dB
Menu
- AGC High/Medium/Low
- D/N Mode Auto/Color/BW (Black and White)
- Image Mode STD/HIGH-SAT
- BLC (Backlight Compensation) Yes
- WDR Yes
- 3D DNR Level 1 to 9
- Language English
- Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
- Video Output 1 HD analog output
- Switch Button TVI/AHD/CVI/CVBS
General
- Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Power Supply 12 VDC ±25%
- Power Consumption Max. 4.7 W
- Protection Level IP67
- Material Metal
- IR Range Up to 30 m
- Dimensions 153.6 mm × 60.4 mm (6.05″ × 2.38″)
- Weight Approx. 303 g (0.67 lb.)
