Description
Datasheet: DS-2CE16D8T-IT3ZF
User Manual: DS-2CE16D8T-IT3ZF

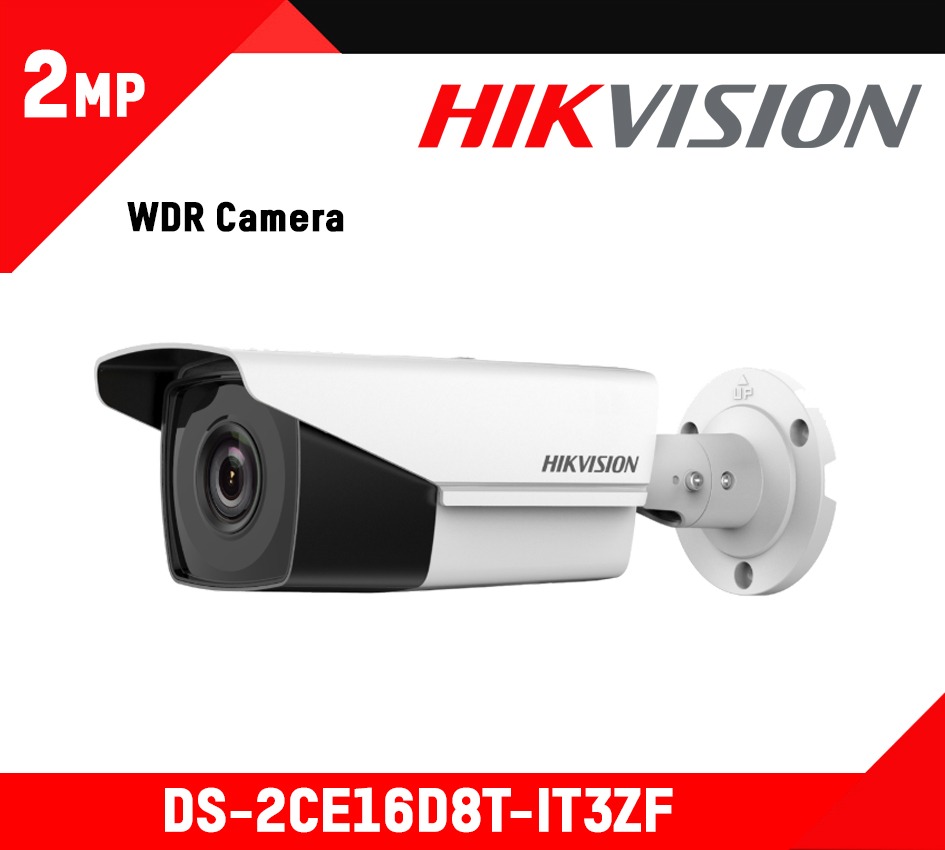

| Model | DS-2CE16D8T-IT3ZF | |
|---|---|---|
| Camera | ||
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| Synchronization: | Internal Synchronization | |
| Up the Coax: | Support | |
| Menu | ||
| Auto White Balance: | Auto / Manual | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English/Chinese | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC ±25%;-A: 12 VDC ±25%, 24 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 60m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 85 mm × 92 mm × 269.6 mm (3.3″ × 3.6″ × 10.6″) | |
| Weight: | Approx. 910 g (2.01 lb.), -A: Approx. 940 g (2.07 lb.) |
|
