Description

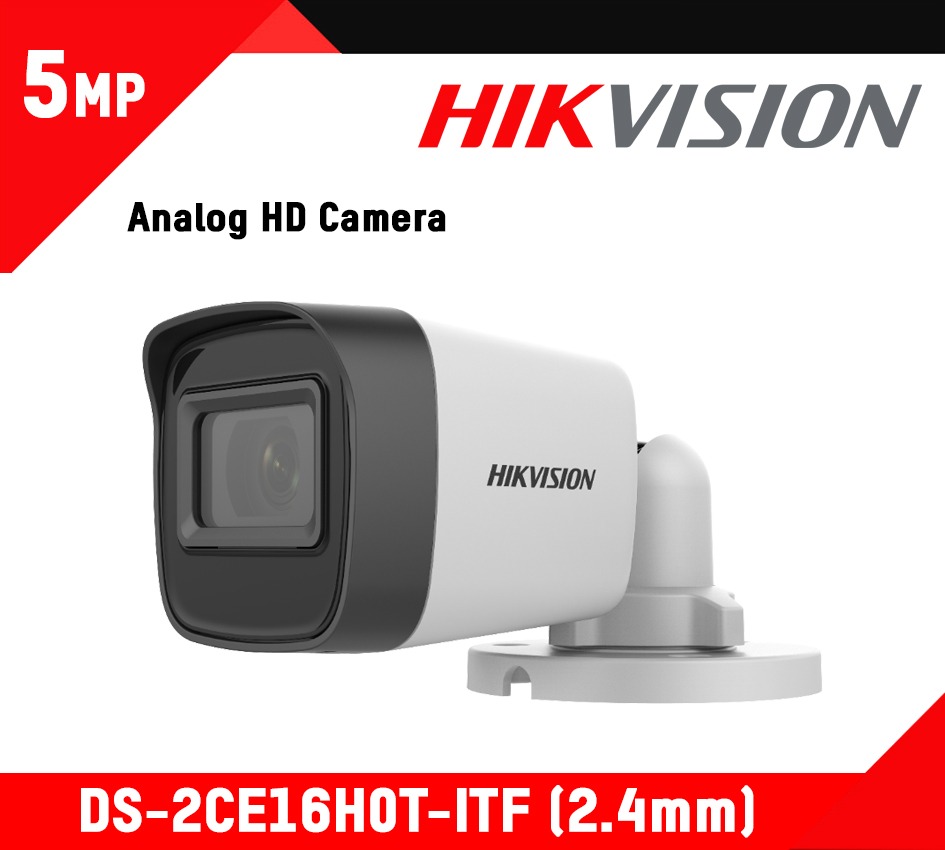

Datasheet: DS-2CE16H0T-ITF (2.4mm)
| Model | DS-2CE16H0T-ITF (2.4mm) | |
|---|---|---|
| Camera | ||
| Image Sensor: | 5MP CMOS Image Sensor | |
| Effective Pixels: | 2560 (H) × 1944 (V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | 2560 × 1944 @ 20fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Menu | ||
| D/N Mode: | Auto / Color / B/W | |
| Auto White Balance: | Auto / Manual | |
| BLC: | Support | |
| Language: | English | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±25% | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 158.6 mm × 61 mm × 58 mm (6.42″ × 2.40″ × 2.28″) | |
| Weight: | Approx. 335 g (0.74 lb.) | |
