Description

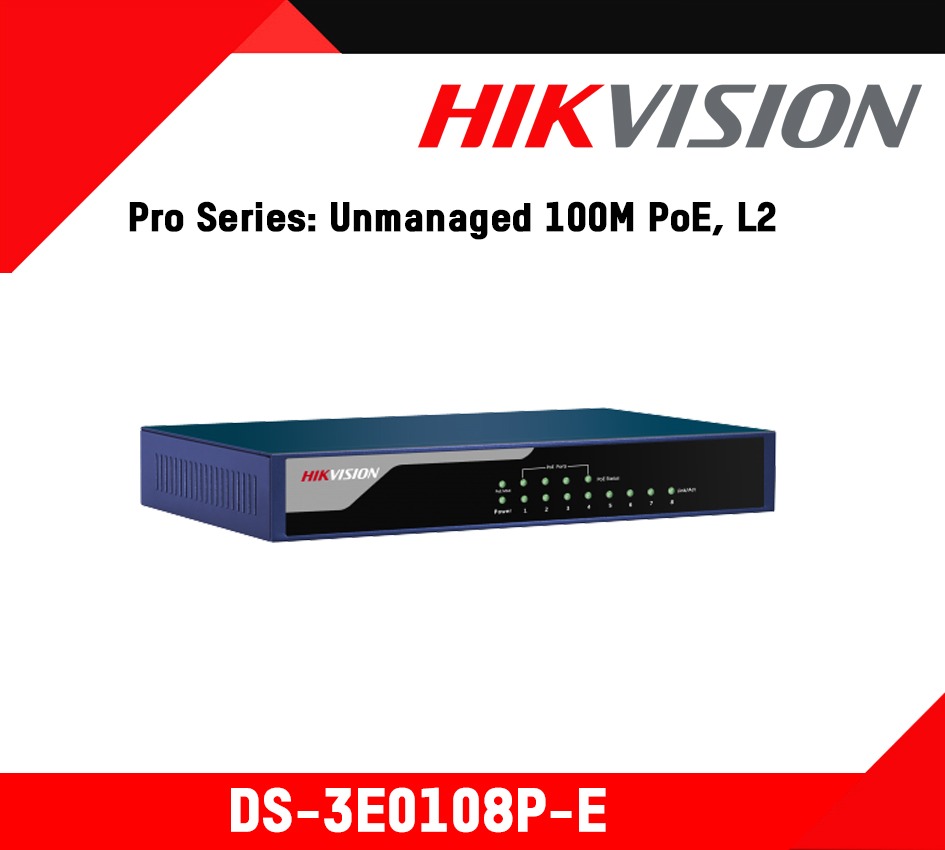

Quick Start Guide: DS-3E0108P-E
Specification
General
- Storage Temperature: Storage Temperature: -40 °C ~ 70 °C
- Working Temperature: Operating Temperature: 0 °C ~ 40 °C
- Working Humidity: Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: Storage Humidity: 5% – 90% RH non-condensing
- Power Input: 51 V DC，1.25 A
- Power Consumption: ≤63w
Performance
- Switching Capacity: 1.6 Gbps
- Store-And-Forward: Supported
- MAC Address Table: 1 k
- MAC Address Learning: Auto-learning/ Auto-aging
PoE
- Working Mode: /
- PoE Standard: IEEE 802.3af, IEEE802.3at
- PoE Powering Mode: Two pair of wires: pins 1 and 2, and pins 3 and 6
- PoE Port: 1-4
- Maximum Total Output: 58 W
- Maximum Port Output: 30 W
Port
- High-Priority Port: /
- 1000 Mbps SFP: /
- 10/100/1000 Mbps RJ45: /
- 10/100 Mbps RJ45: 8
Standard
- Network Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE802.3at, IEEE 802.3x
Network
- Transmission Speed: Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex),Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex)
- Transmission Medium: Ethernet: Cat 3 or better UTP/STP, Fast Ethernet: Cat 5 or better UTP/STP
- Lightning-Proof Ranking: /
POE
- PoE Powering Mode: Two pair of wires: pins 1 and 2, and pins 3 and 6
- PoE Port: 1-4
