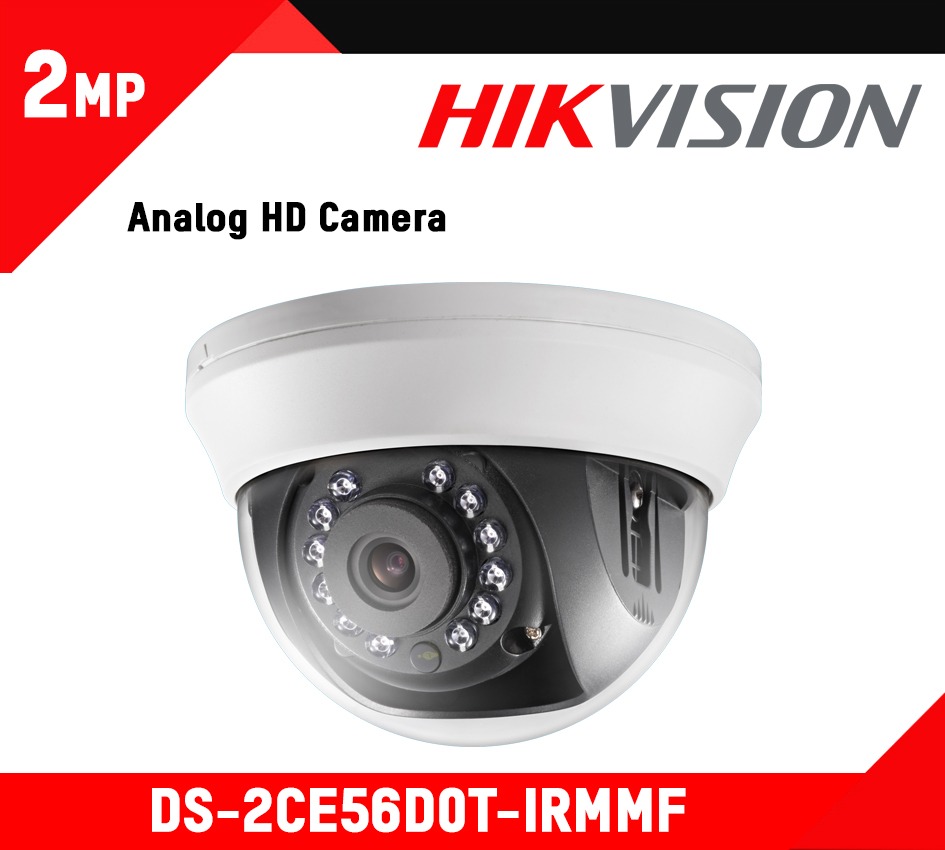

User Manual : DS-2CE56D0T-IRMMF
| Model | DS-2CE56D0T-IRMMF | |
|---|---|---|
| Camera | ||
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed focal lens | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 350°, Tilt: 0° to 70°, Rotation: 0° to 350° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Dimension: | Φ 98 mm × 65.4 mm (3.86″ × 2.57″) | |
| Weight: | 240 g (0.53 lb.) | |
