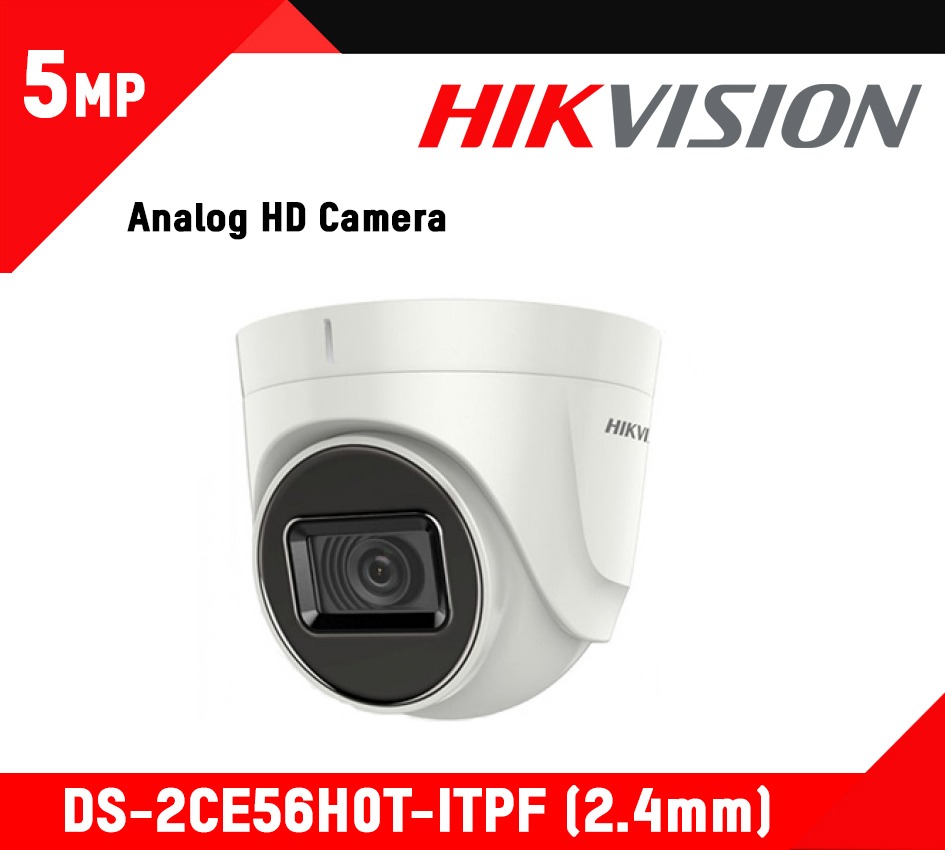

Datasheet: DS-2CE56H0T-ITPF (2.4mm)
| Model | DS-2CE56H0T-ITPF (2.4mm) |
|---|---|
| Device Type | surveillance camera |
| Connection type | wired |
| Matrix resolution | 5 Mpx (2560×1920) |
| Video standard | HDCVI/HDTVI/AHD/CVBS (Analogue) |
| Installation location | inside |
| Type of instalation | wall/ceiling/overhead |
| Form factor | dome |
| Intended for use | home/house/office/store/warehouse/production/garage |
| Wi-Fi support | no |
| Matrix type | CMOS image sensor |
| Recording speed | 5 MP – (1-20 fps)/4 MP – (1-25 fps) |
| Camera motion sensor | no |
| Lens type | fixed |
| Focal length | 2.4 mm |
| Viewing angle | 85.5° |
| Optical zoom | 1x |
| Digital zoom | 1x |
| Light sensitivity | 0.01 Lx / F1.2 (Color)/0 Lx with IR |
| Light distance | 20 m |
| Day-night mode | yes/ICR filter |
| Built-in microphone | no |
| Built-in speaker | no |
| Special features | smart IR-illumination (Exir 2.0) |
| Video output | 1xBNC |
| Audio inputs | no |
| Audio outputs | no |
| Network output | no |
| Network Interface | no |
| Memory card slot | no |
| Type of memory cards | no |
| PoE support | no |
| PoE type | no |
| Alarm Inputs-Outputs | no |
| Alarm inputs | no |
| Alarm outputs | no |
| Modes | ICR/Color/B/W / AGC / AWB / 2D DNR / BLC / DWDR |
| Streaming | 1 stream |
| PTZ control | no |
| Built-in lightning protection | no |
| Additional functions of camera | smart IR |
| Moisture and dust protection | no |
| Vandal protection | no |
| Browsers | Chrome/Firefox/Safari/Edge/Opera |
| OS support | Windows/MAC OS/IOS/Android |
| Powered by batteries / rechargeable batteries | no |
| Integration with Ajax system | no |
| Compatibility | with Hikvision DVRs |
| Consumption | 4.3 W |
| Operating voltage | 12V DC |
| Body color | white |
| Body material | plastic |
| Weight | 130 g |
| Temperature range | -40…+60°C |
