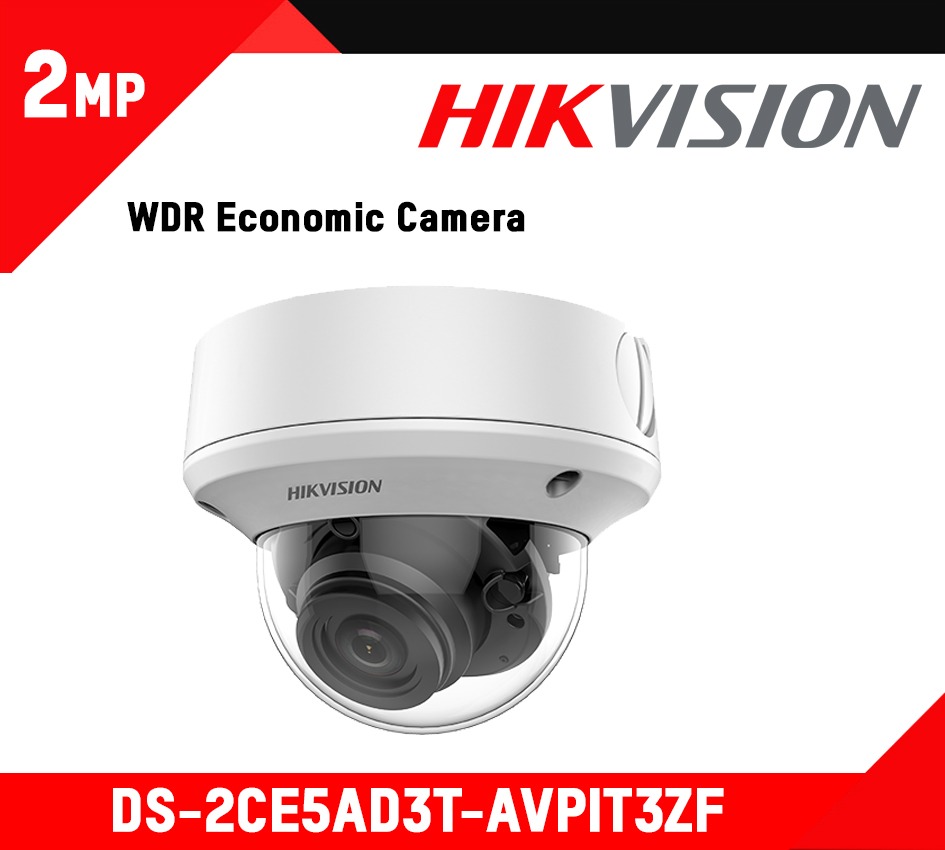

User Manual: DS-2CE5AD3T-AVPIT3ZF
Data Sheet: DS-2CE5AD3T-AVPIT3ZF
Camera
- Image Sensor 2.0 megapixel progressive scan CMOS
- Signal System PAL/NTSC
- Video Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Resolution 1920 (H) ×1080 (V)
- Min. Illumination 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Lens 2.7 mm to 13.5 mm
- Horizontal Field of View 102°to 31°
- Lens Mount Ø 14
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
- Synchronization Internal synchronization
- WDR (Wide Dynamic Range) ≥ 120 dB
Menu
- AGC High/Medium/Low
- D/N Mode Auto/Color/BW (Black and White)
- Image Mode STD/HIGH-SAT
- BLC (Backlight Compensation) Yes
- WDR Yes
- 3D DNR Level 1 to 9
- Language English
- Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
- Video Output 1 HD analog output
- Switch Button TVI/AHD/CVI/CVBS
General
- Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Power Supply
12 VDC ±25%
-A: 24 VAC ±15%, 12 VDC ±20% - Power Consumption
Max. 7.7 W
-A: Max. 9.7 W - Protection Level IP67, IK10
- Material Metal
- IR Range Up to 70 m
- Dimensions 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
- Weight
Approx. 830 g (1.83 lb.)
-A: Approx. 870 g (1.92 lb.)
