Description

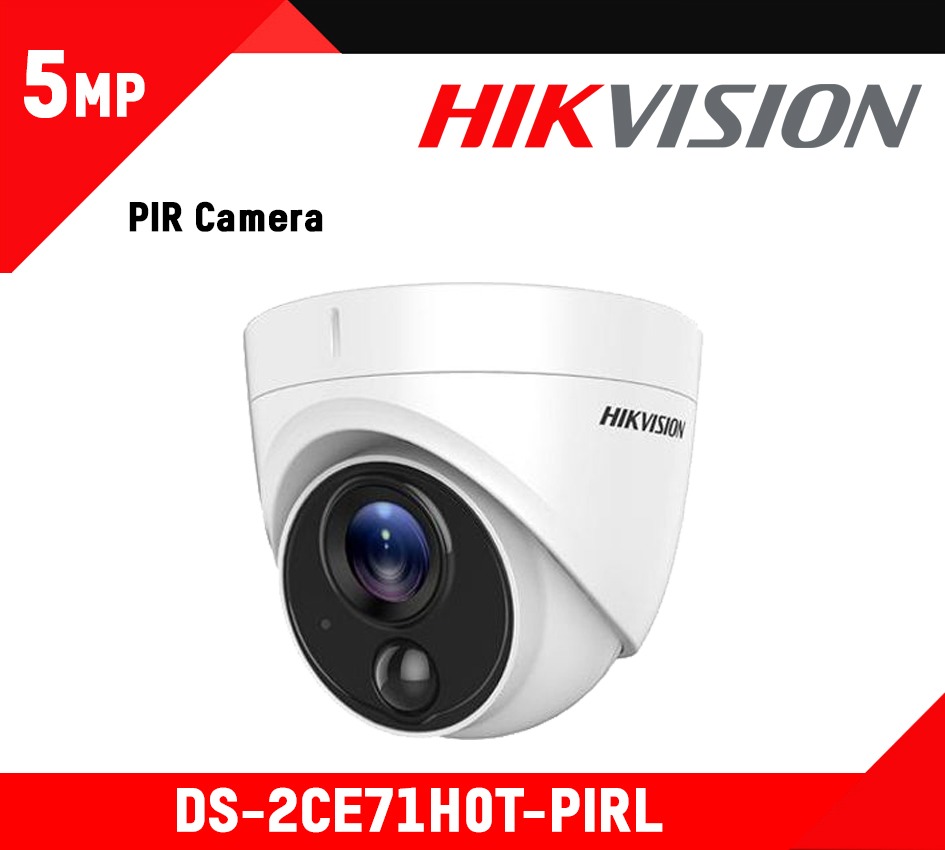

| Model | DS-2CE71H0T-PIRL | |
|---|---|---|
| Camera | ||
| Image Sensor: | 5MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Lens: | 2.8 mm, 3.6 mm fixed focal lens | |
| Day& Night: | IR cut filter | |
| Synchronization: | Internal Synchronization | |
| Lens | ||
| Horizontal Field of View: | 85.5° (2.8 mm), 80.1° (3.6 mm) | |
| Menu | ||
| White Light: | Alarm/Off | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| Auto White Balance: | ATW/MANUAL | |
| AGC: | Yes | |
| Language: | English | |
| Function: | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror | |
| Interface | ||
| Video Out: | 1 HD analog output | |
| General | ||
| Visual Alarm: | Yes | |
| PIR Range: | Angle: 110°, Range:11 m | |
| Material: | Enclosure: Plastic Main body: Metal |
|
| Ingress Protection: | IP67 | |
| Power Supply: | 12 VDC±25% | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) | |
| Dimension: | Ø 109.8 mm × 89.75 mm (Ø 4.32″ × 3.53″ ) | |
| Weight: | Approx. 310 g (0.68 lb.) | |
