Description

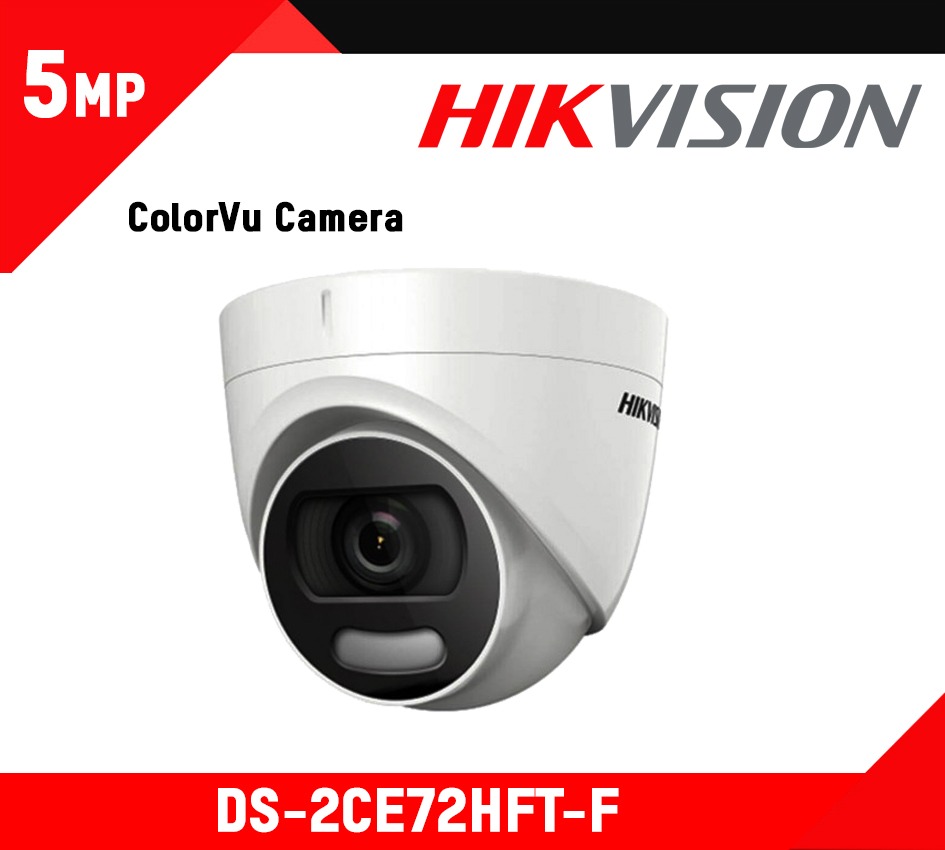

Data Sheet:DS-2CE72HFT-F
User Manual:DS-2CE72HFT-F
| Camera | |
|---|---|
| Image Sensor : | 5 MP CMOS |
| Signal System : | PAL/NTSC |
| Frame Rate : | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
| Resolution : | 2560 (H) × 1944 (V) |
| Min. Illumination : | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light |
| Shutter Time : | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens : | 3.6 mm, 6 mm fixed lens |
| Horizontal Field Of View : | 80.1° (3.6 mm), 49.3° (6 mm) |
| Lens Mount : | M16 |
| Strobe Light Alarm : | Yes |
| Day & Night : | Color |
| WDR (Wide Dynamic Range) : | ≥130 dB |
| Angle Adjustment : | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Menu | |
| White Light : | Auto/Off |
| Image Mode : | STD/HIGH-SAT |
| AGC : | Yes |
| Day/Night Mode : | Color |
| White Balance : | Auto/Manual |
| HLC : | Yes |
| BLC (Backlight Compensation) : | Yes |
| Language : | English |
| Functions : | Brightness, Sharpness, Mirror, Smart Light |
| Interface | |
| Video Output : | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition : | ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply : | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption : | Max. 3.5 W |
| Protection Level : | IP67 |
| Material : | Front Cover: Metal Main Body: Plastic |
| IR Range : | Up to 20 m |
| Communication : | HIKVISION-C |
| Dimensions : | Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″) |
| Weight : | Approx. 350 g ( 0.77 lb.) |
