Description
Datasheet: DS-3E0326P-E/M
User Manual: DS-3E0326P-E/M

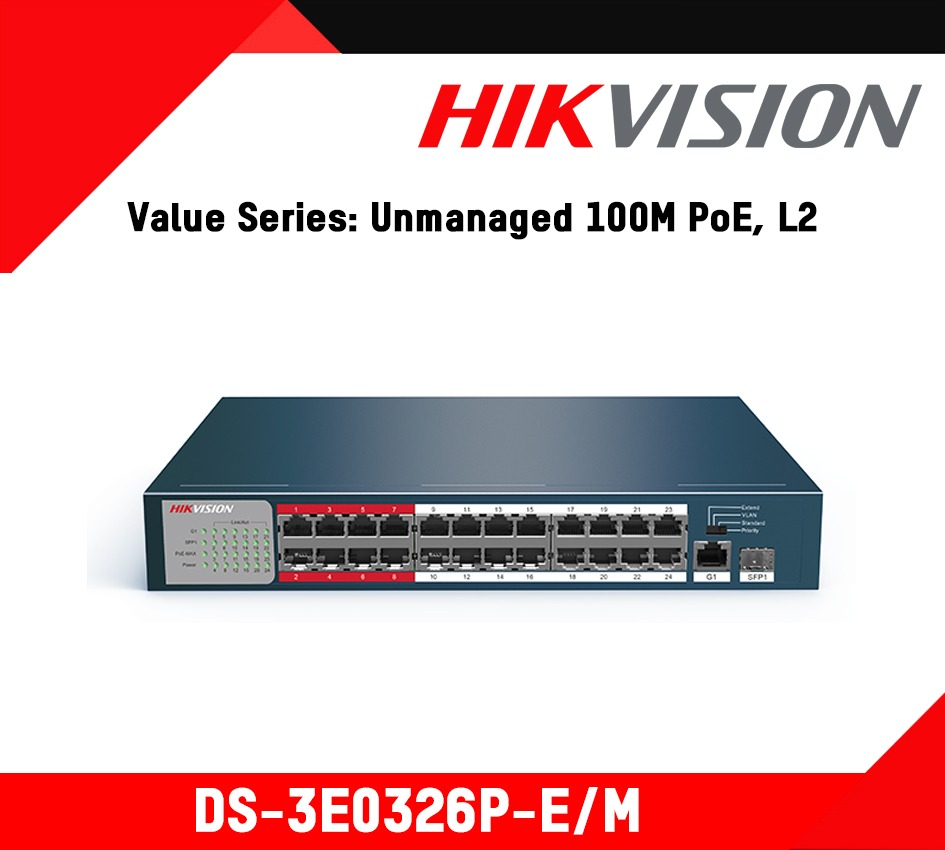

| Model | DS-3E0326P-E/M | |
|---|---|---|
| Ports | ||
| 10/100M RJ45: | 24 | |
| 10/100/1000M RJ45: | 1 | |
| 1000M SFP: | 1 independent | |
| Port of high priority: | Port 1 – 8 | |
| Performance | ||
| Switching Capacity: | 8.8 Gbps | |
| Store-and-forward: | Supported | |
| MAC address table: | 4 k | |
| MAC address learning: | Auto-learning/ Auto-aging | |
| Power Over Ethernet | ||
| PoE Standard: | IEEE 802.3af, IEEE802.3at | |
| Working Mode: | Priority, Standard, Isolate, Extend | |
| PoE cable core: | Supports 8-pin power supply | |
| PoE port: | 1 – 24 | |
| Port max. power: | 30 W | |
| Switch max. power: | 225 W | |
| General | ||
| Power Supply: | 100~240 V AC，50/60 Hz | |
| Power Consumption: | ≤250w | |
| Working Temperature: | Operating Temperature: 0 °C ~ 40 °C | |
| Working Humidity: | Operating Humidity: 10% – 90% RH non-condensing | |
| Storage Temperature: | Storage Temperature: -40 °C ~ 70 °C | |
| Storage Humidity: | Storage Humidity: 5% – 90% RH non-condensing | |
