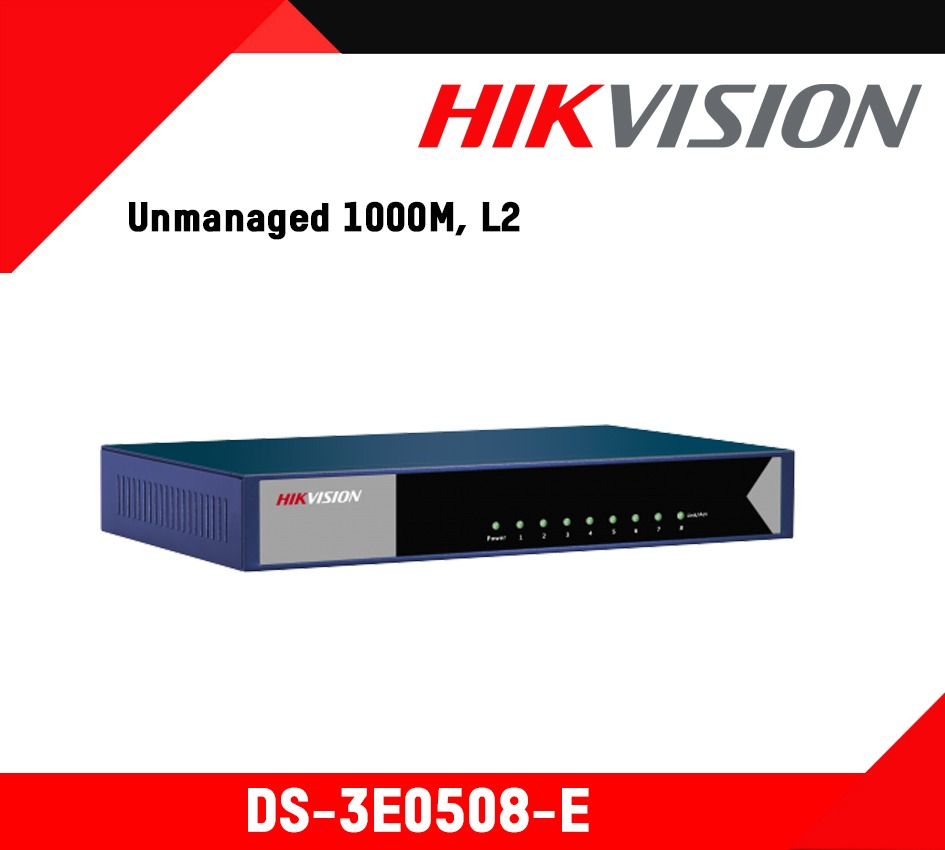

DS-3E0508-E Hikvision Unmanaged 1000M, L2 Switch Colombocctv.com Srilanka
DS-3E0508-E
Availability: not in Stock

DS-3E0508-E

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standard
  • 8*10/100/1000Mbps auto-negotiation RJ45 Ports
  • Plug and play without configuration
  • Up to 16 Gbps back panel bandwidth and supports non-blocking wire-speed forwarding
  • LEDs to easily monitor link speed, activity and find problems in time
  • IEEE802.3x full duplex flow control and half duplex backpressure flow control
  • Loop detection and loop prevention
  • Up to 4 kV lightning-proof for each port
  • Desk & wall-mounting installation
  • Full-metal & larger shell ensure effective cooling
Categories:

Description


Datasheet: DS-3E0508-E

Model DS-3E0508-E
Device Type Switch – 8 ports – unmanaged
Enclosure Type Desktop, wall-mountable
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000
Performance Bandwidth: 16 Gbps
MAC Address Table Size 4K entries
Features Auto-negotiation, store and forward, full duplex mode, loop prevention, metal housing, MAC address learning, MAC address aging, lightning protection
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Status Indicators Power, link/activity
Interfaces 7 x 1000Base-T RJ-45
1 x 1000Base-T RJ-45 uplink
Power Device External power adapter
Power Provided 9 V – 1 A
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 5.5 Watt
Width 7.4 in
Depth 4.2 in
Height 1.3 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 90% (non-condensing)
