Description

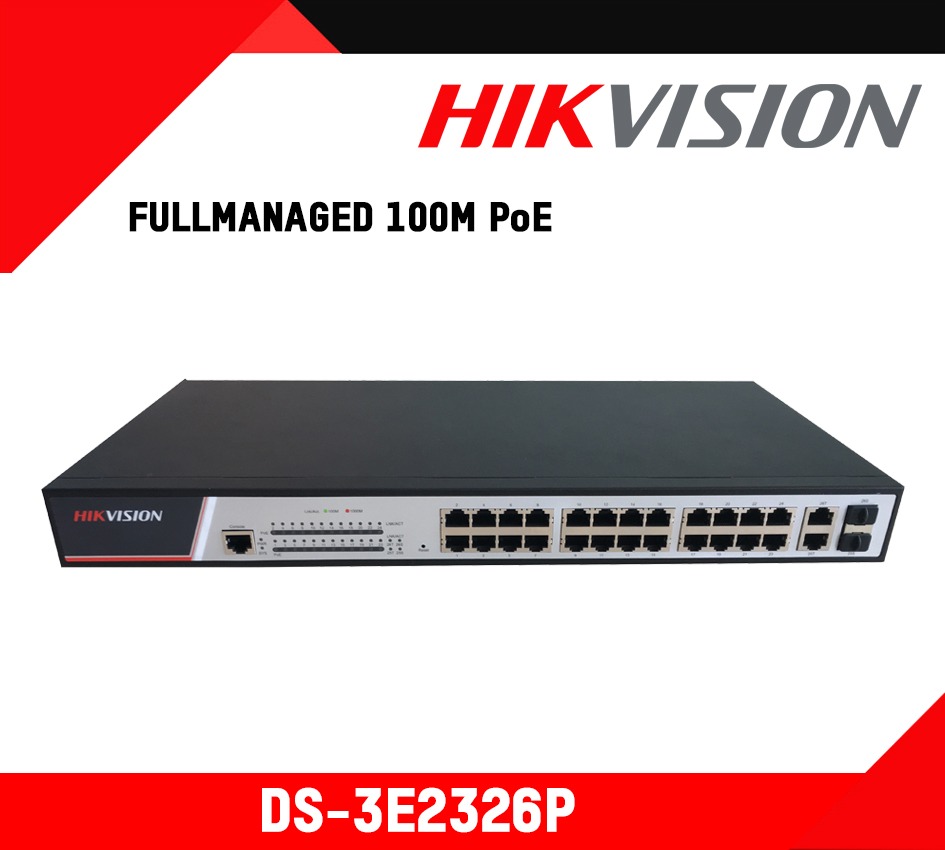

Datasheet : DS-3E2326P
User Manual : DS-3E2326P
Network Parameters
- Switching Capacity: 22.8 Gbps
- Packet Forwarding Rate: 9.6 Mpps
PoE Power Supply
- PoE Port: 24 × 10/100Mbps RJ45 ports, 2 × Gigabit combo ports
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: 1/2 (+), 3/6 (-)
Software Function
- Management Method: Console, Telnet, SSH2.0, Web; SNMP v1/v2/v3; TFTP, RMON
- Multicast: IGMP v1/v2/v3, IGMP snooping, IGMP Fast Leave, Multicast group strategy and quantity limitation, Multicast flow copying over VLANs (S2108POE does not support the function.)
General
- Dimension (W × H × D): 440 × 232 × 44
- Storage Temperature: -20℃-70℃
- Storage Humidity: 5%-95%
- Operating Temperature: 0℃-50℃
- Operating Humidity: 10%-90%
- Power Supply: AC: 100 V-240 V, 50 Hz±10%
- Power Consumption: 400 W (POE 380 W)＜15 W
Approval
- EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 27)
- Safety: UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2037)
- Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2026)
