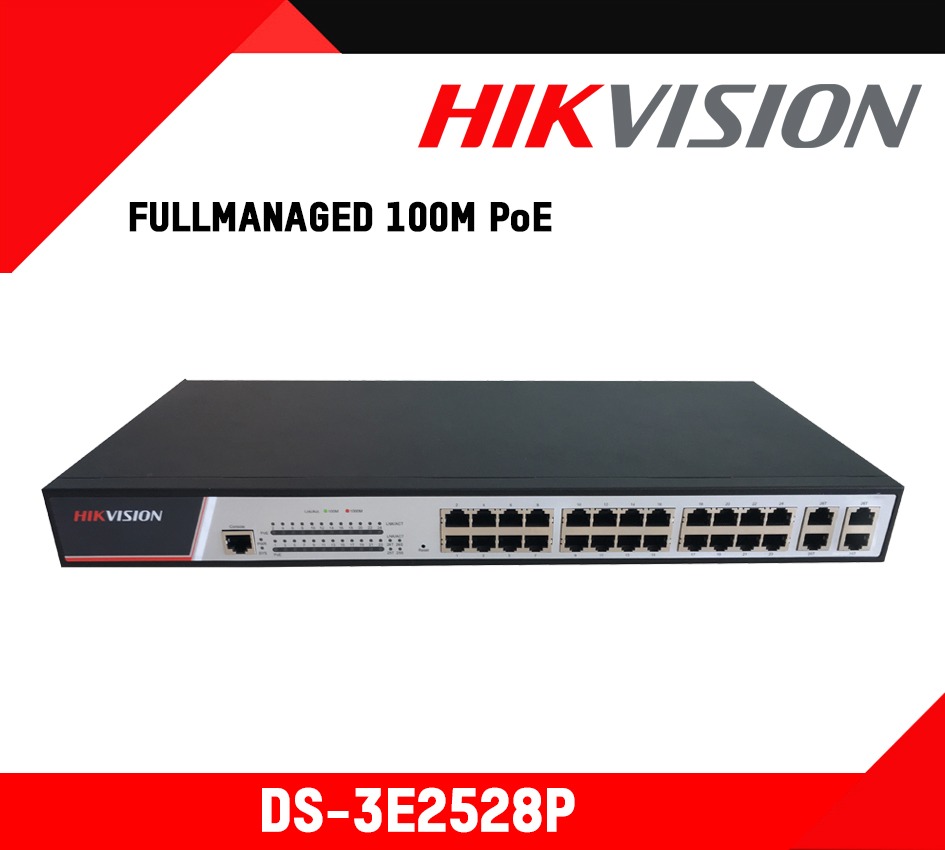

DS-3E2528P - Hikvision Full Managed 100M PoE Switch Colombo CCTV Srilanka
DS-3E2528P
Availability: not in Stock

DS-3E2528P

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • DS-3E2528P supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers
  • DS-3E2528P has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods
  • DS-3E2528P supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade
  • DS-3E2528P supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy
  • DS-3E2528P supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
  • DS-3E2528P supports the configuration of Base-T port priority when the power is inadequate.
  • DS-3E2528P supports POE port and up to 4KV power thunder-proof.
  • DS-3E2528P supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services
  • DS-3E2528P provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services
  • DS-3E2528P supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”
  • Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions
  • Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+
  • DS-3E2528P supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions
  • DS-3E2528P supports perfect ring detection mechanism which ensures the long-term stable running of network
  • DS-3E2528P supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security
  • DS-3E2528P supports many management modes such as the console port, Telnet, SSH
  • DS-3E2528P supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient
  • DS-3E2528P supports TFTP-patterned file upload/download management
Category:

Description

 Datasheet : DS-3E2528P

Model DS-3E2528P
Port Number 24 x 10/100/1000Base-T PoE ports, 4 1000Base-X SFP ports, 1 Console port
Switching Capacity 56Gbps
Packet Forwarding Rate 42Mpps
MAC Address Table 8K
Dimensions(L × H × D) 440 mm × 45 mm × 232 mm
Consumption <15W
POE Standard IEEE802.3af, IEEE802.3at
POE Power Budget 380W
Power Supply AC：100V-240V，50Hz±10%
Environment Operating temperature/humidity: 0℃-45℃，5%-95% non-condensing Storage temperature/humidity: -20℃-70℃；5%-95% non-condensing
MAC Exchange Static configuration and dynamic MAC learning; MAC browsing and removal Configurable aging time of the MAC address; Limited number of learnable MAC addresses; MAC filtration
VLAN 4K VLAN; GVRP; QinQ; Private VLAN
STP 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection
Multicast IGMP v1/v2/v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation
QoS Flow classification based on L2~4 protocols CAR flow limit 802.1P/DSCP priority re-labeling SP, WRR, and “SP+WRR” Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping
Security L2/L3/L4 ACL flow identification and filtration DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast/multicast/unknown unicast storm-control Port isolation Port security, and “IP+MAC+port” binding
Reliability Static/LACP link aggregation EAPS and ERPS
Management Console, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON
