Description
Datasheet: DS-7104HQHI-K1(S)
User Manual: DS-7104HQHI-K1(S)

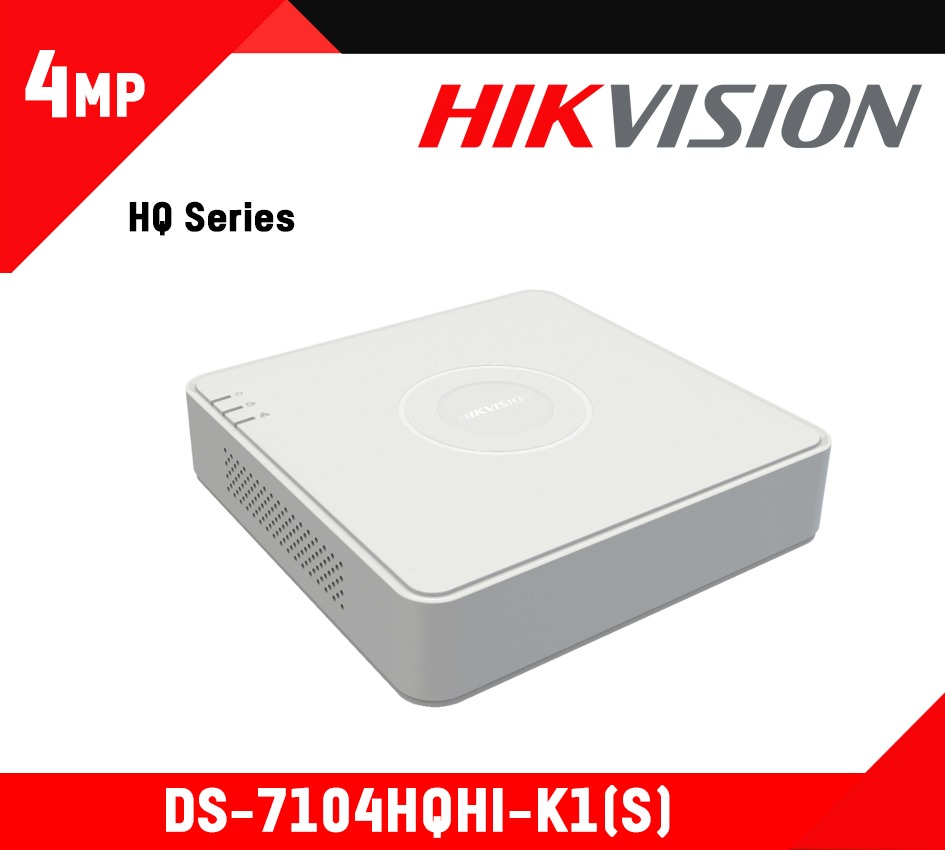

| Model | DS-7104HQHI-K1(S) |
|---|---|
| Device Type | video recorder |
| Connection type | wired |
| Video standard | IP, HDCVI, HDTVI, AHD, CVBS (Analogue) |
| Record resolution | 4 Mpx |
| Recording speed | Main Stream: normal mode: 4 МР lite – 15 fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF – 25 fps, 3 МР mode: 3 МР / 1080p / 720p / VGA / WD1 / 4CIF / CIF -15 fps, Sub Stream: WD1 / 4CIF – 12 fps; CIF – 25 fps |
| Number of channels | 4 |
| Number of analog cameras | 4 |
| Number of IP cameras | 2 |
| Video inputs | no |
| Video output | no |
| Audio inputs | 1xRCA |
| Audio outputs | 1xRCA |
| Incoming Bandwidth | 25 Mbps |
| Outcoming bandwitch | no data |
| Network Interface | 1 – RJ-45 Port (100M), TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Alarm Inputs-Outputs | no |
| Alarm inputs | no |
| Alarm outputs | no |
| Video compression | H.264, H.264+, H.265, H.265+ |
| CPU | no data |
| Streaming | 2 streams |
| Recording modes | constant / schedule / motion detection / alarm |
| Maximum number of users | 128 |
| Mobile applications | iOS, Android |
| Number of HDD | 1 |
| HDD type | SATA up to 6 ТB |
| HDD storage capacity | 6 TB |
| RAID | no |
| PoE support | no |
| PoE ports | no |
| Wi-Fi support | no |
| HDMI port | 1 |
| VGA output | 1 |
| USB port | 2xUSB 2.0 |
| eSata | no |
| RS-232 | no |
| RS-485 | no |
| Intended for use | home, house, office, store, warehouse, production, garage |
| Compatibility | with analog cameras, Hikvision IP cameras |
| Operating voltage | 220V AC |
| Consumption | 8 W |
| Dimensions (WхHхD) | 200x200x45 mm |
| Body color | white |
| Weight | 1000 g |
| Temperature range | -10…+50°C |
