Description

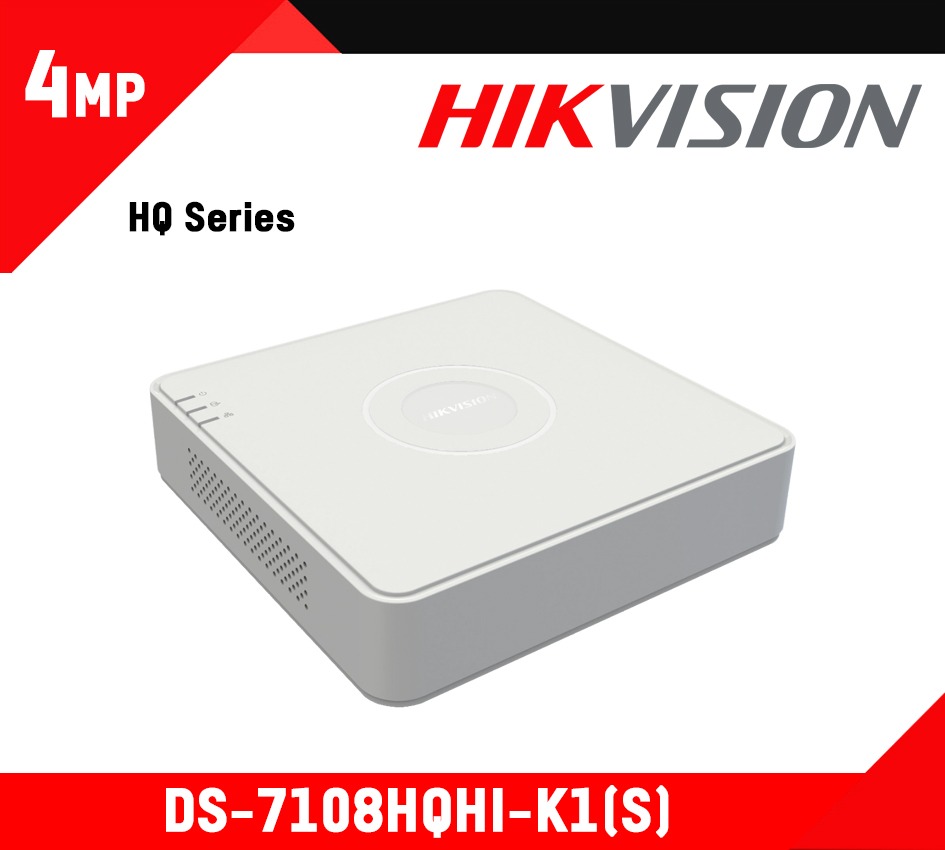

| Model | DS-7108HQHI-K1(S) |
|---|---|
| Connection type | wired |
| Video standard | IP, HDCVI, HDTVI, CVBS (Analogue) |
| Record resolution | 6 Mpx |
| Recording speed | main stream 3 MP / 1080p / 720p – 15 fps, 4 MP lite / 3 MP – 15 fps, 1080р lite / 720p lite / D1 – 25 fps, additional stream WD1 / 4CIF – 12 fps, CIF – 25 fps |
| Number of channels | 8 |
| Number of analog cameras | 8 |
| Number of IP cameras | 4 |
| Video inputs | 8xBNC |
| Video output | no |
| Audio inputs | 1xRCA |
| Audio outputs | 1xRCA |
| Incoming Bandwidth | 50 Mbps |
| Network Interface | RJ45 10M/100M |
| Alarm Inputs-Outputs | no |
| Alarm inputs | no |
| Alarm outputs | no |
| Video compression | H.264, H.264+, H.265, H.265+ |
| Streaming | 2 streams |
| Recording modes | constant / schedule / motion detection / alarm |
| Maximum number of users | 64 |
| Mobile applications | iOS, Android |
| Number of HDD | 1 |
| HDD type | 1 SATA III 6 ТБ |
| HDD storage capacity | 6 TB |
| RAID | no |
| PoE support | no |
| PoE ports | no |
| Wi-Fi support | no |
| HDMI port | 1 |
| VGA output | 1 |
| USB port | 2xUSB 2.0 |
| eSata | no |
| RS-232 | no |
| RS-485 | no |
| Intended for use | home, house, office, store, warehouse, production, garage |
| Special features | coaxial audio transmission |
| Compatibility | ONVIF |
| Operating voltage | 12V DC |
| Consumption | 12 W |
| Dimensions (WхHхD) | 200 × 200 × 45 mm |
| Body color | white |
| Weight | 1000 g |
| Temperature range | -10…+50°C |
| Producing country | China |
| Device class | economy |
| In set | 8-channel Turbo HD Video Recorder Hikvision DS-7108HQHI-K1(S) ( 1 pc.), User Manual ( 1 pc.), USB mouse ( 1 pc.), Fasteners ( 1 pc.) |
