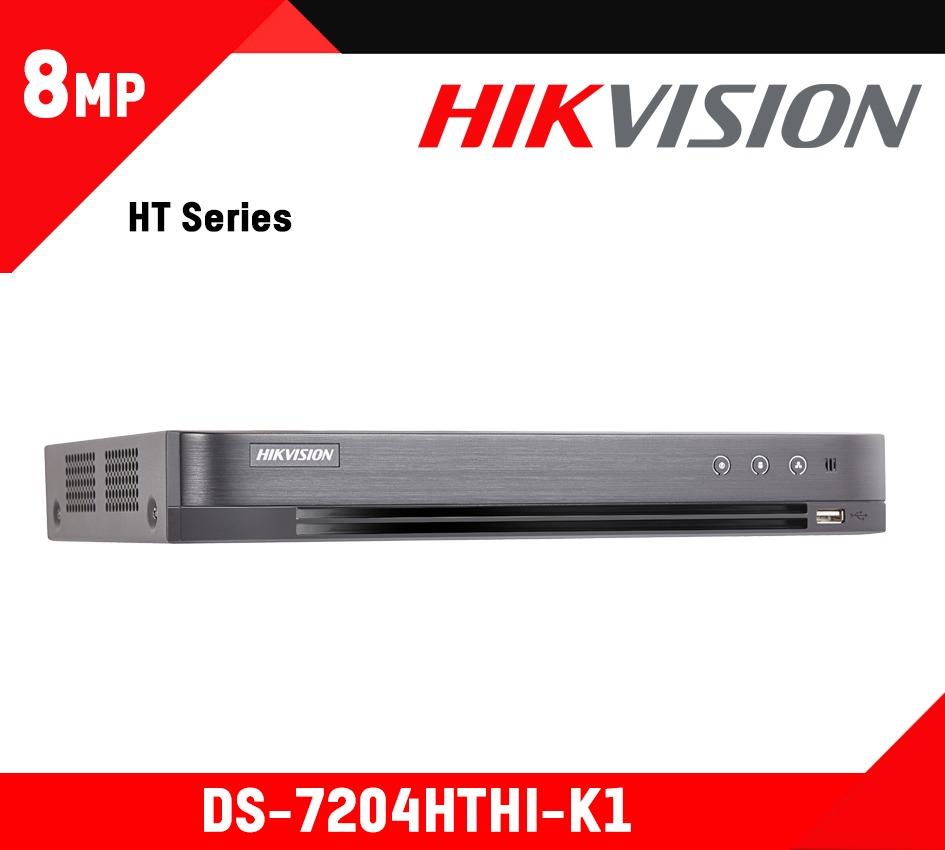

DS-7204HTHI-K1
Availability: not in Stock

DS-7204HTHI-K1

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 4K H265+ SERIES TURBO HD DVR
  • Video Input and Transmission
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Up to 2-ch 8 MP IP cameras input
  • 8 MP HDTVI video input and live view
  • Defogging function enabled for the supported analog cameras
  • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p
  • HDTVI signal
  • Compression and Recording
  • H.265+/H.265/H.264+/H.264 encoding
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • Full channel recording at up to 8 MP resolution
  • Video Output
  • Simultaneous HDMI/VGA output
  • HDMI output at up to 4K (3840 × 2160) resolution
  • Separate CVBS output
  • Storage and Playback
  • 1 SATA interface (up to 8 TB capacity per HDD)
  • 4-ch synchronous playback
  • Smart search for efficient playback
  • Smart Function
  • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
  • VCA information overlay in live view and smart playback
  • VQD (Video Quality Diagnostics)

Description


Datasheet: DS-7204HTHI-K1


User Manual: DS-7204HTHI-K1

Model DS-7204HTHI-K1
Video/Audio Input
Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video Compression: H.265+/H.265/H.264+/H.264
Analog Video Input: 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Analog and HD-TVI video input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
IP Video Input: 2-ch
Up to 8 MP resolution,Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio Compression: G.711u
Video/Audio Output
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output: VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Frame Rate: Main stream:
8 MP@10fps, 5 MP@20fps, 3 MP@18fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps to 16 Mbps
Stream Type: VidVideo, Video & Audioeo, Video & Audio
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Audio Bit Rate: 64 Kbps
Dual Stream: Support
Synchronous Playback: 4-ch
Network management
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
Hard Disk Driver
Interface Type: 1 SATA interface
Capacity: Up to 8 TB capacity for each disk
External Interface
Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB Interface: Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Serial Interface: RS-485 (half-duplex)
Alarm Input: 4/1
General
Power Supply: 12 VDC
Consumption: ≤ 15 W
Working Temperature: -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working Humidity: 10% to 90%
Dimensions: 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight: ≤ 1.5 kg (3.3 lb)
